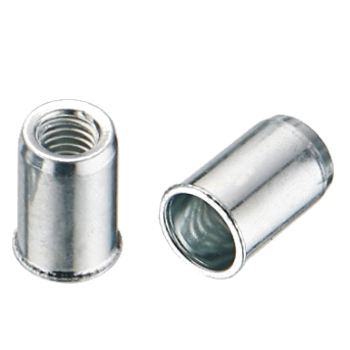

Small Head Rivet Nuts
Small Head Rivet Nuts

Model:MA Country of Origin:Taiwan Material:Stainless Steel

Detail Specifications / Descriptions

Cylindrical Threaded Insert, Reduced Countersunk Head, Short Type, Open Type

PART NO.: SS. MA4
THREAD SIZE: M4x0.7
GRIP RANGE: 0.5-2.0
HOLE SIZE+0.1/-0: 6.40
A±0.3: 7.20
B max.: 6.35
C±0.3: 10.40
H±0.2: 0.45

PART NO.: SS. MA5
THREAD SIZE: M5x0.8
GRIP RANGE: 0.5-3.0
HOLE SIZE+0.1/-0: 7.11
A±0.3: 8.10
B max.: 7.10
C±0.3: 11.90
H±0.2: 0.50

PART NO.: SS. MA6
THREAD SIZE: M6x1.0
GRIP RANGE: 0.5-3.0
HOLE SIZE+0.1/-0: 9.60
A±0.3: 10.50
B max.: 9.50
C±0.3: 14.50
H±0.2: 0.60

PART NO.: SS. MA8
THREAD SIZE: M8x1.25
GRIP RANGE: 0.7-3.0
HOLE SIZE+0.1/-0: 10.60
A±0.3: 11.50
B max.: 10.50
C±0.3: 16.00
H±0.2: 0.60
