Small Head Rivet Nuts
Small Head Rivet Nuts

Model:MEF Country of Origin:Taiwan Material:Stainless Steel

Detail Specifications / Descriptions

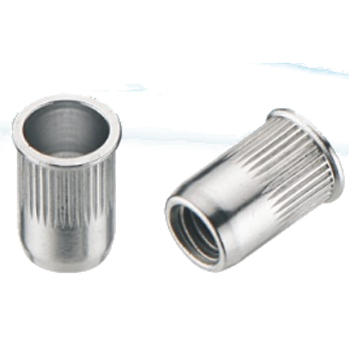

Knurled Cylindrical Threaded Insert, Reduced Countersunk Head, Open Type.

PART NO.: SS. ME3F
THREAD SIZE: M3x0.5
GRIP RANGE: 0.50-2.00
HOLE SIZE+0.1/-0: 5.00
A±0.3: 5.90
B max.: 4.97
C±0.3: 9.00
H±0.2: 0.50

PART NO.: SS. ME4F
THREAD SIZE: M4x0.7
GRIP RANGE: 0.50-2.50
HOLE SIZE+0.1/-0: 6.00
A±0.3: 6.90
B max.: 5.97
C±0.3: 11.00
H±0.2: 0.50

PART NO.: SS. ME5F
THREAD SIZE: M5x0.8
GRIP RANGE: 0.70-3.00
HOLE SIZE+0.1/-0: 7.00
A±0.3: 8.00
B max.: 6.97
C±0.3: 12.00
H±0.2: 0.50

PART NO.: SS. ME6F
THREAD SIZE: M6x1.0
GRIP RANGE: 0.70-3.00
HOLE SIZE+0.1/-0: 9.00
A±0.3: 10.00
B max.: 8.97
C±0.3: 14.50
H±0.2: 0.60

PART NO.: SS. ME8F
THREAD SIZE: M8x1.25
GRIP RANGE: 0.70-3.50
HOLE SIZE+0.1/-0: 11.00
A±0.3: 12.00
B max.: 10.97
C±0.3: 16.00
H±0.2: 0.60

PART NO.: SS. ME10F
THREAD SIZE: M10x1.5
GRIP RANGE: 1.00-4.00
HOLE SIZE+0.1/-0: 13.00
A±0.3: 14.20
B max.: 12.97
C±0.3: 19.30
H±0.2: 0.60
