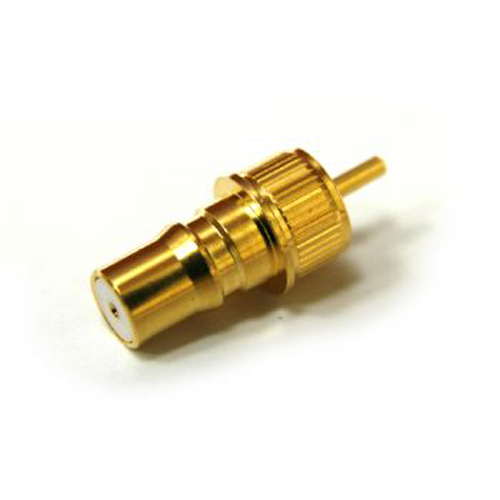

QMA STR JACK RECEPTACLE
QMA STR JACK RECEPTACLE

Model:QA-1003

Detail Specifications / Descriptions

Impedance : 50 ohm
Frequency Range :
DC~6GHz(Optimized)
DC~18GHz(working range)
Working Voltage : 480 VRMS MAX.
Dielectric Withstanding Voltage : 1,000 VRMS MIN.
V.S.W.R. :
Straight 1.25 MAX @6 GHz.
Right Angle 1.45 MAX @6 GHz.
Contact Resistance :
Center Contact : 3.0 Milliohms MAX.
Outer Contact : 2.5 Milliohms MAX.
Insulator Resistance : 5,000 Megohms MIN.
