MMCX SERIES

MMCX SERIES

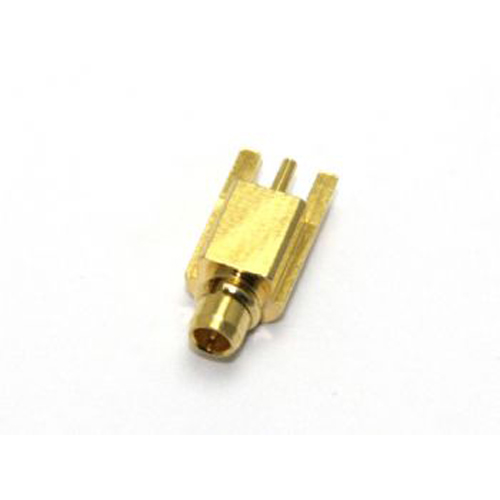

Model:
MX-1011

Detail Specifications / Descriptions

Impedance : 50 ohm
Frequency Range : DC~6GHz
Voltage rating : 170 VRMS
Dielectric Withstanding Voltage : 500 VRMS MIN.
V.S.W.R. :
Straight:1.3 MAX.
Right Angle:1.5 MAX.
Contact Resistance :
Center Contact : 5.0 Milliohms MAX.
Outer Contact : 3.0 Milliohms MAX.
Insulator Resistance : 1,000 Megohms MIN.

Related Products
Company: AEC CONNECTORS CO., LTD.
