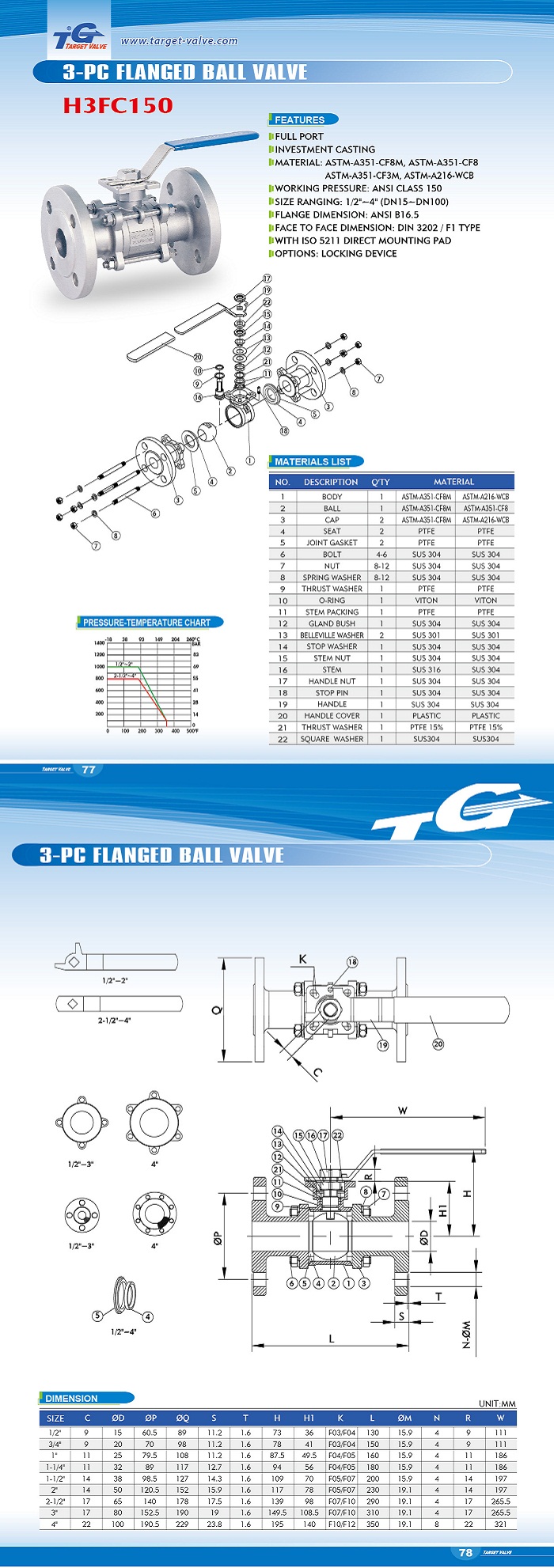

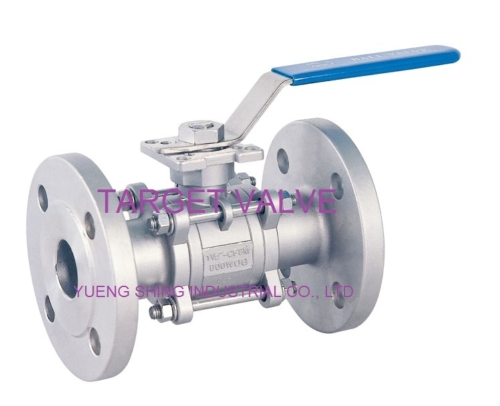

3-PC Flanged Ball Valve
- Model:
- H3FC150
- Country of Origin:
- Taiwan
- Material:
- ASTM-A351-CF8M, ASTM-A351-CF8, ASTM-A351-CF3M
Detail Specifications / Descriptions
✽ Full Port
✽ Investment Casting
✽ Material: ASTM-A351-CF8M, ASTM-A351-CF8, ASTM-A351-CF3M, ASTM-A216-WCB
✽ Working Pressure: ANSI CLASS 150
✽ Flange Dimension : ANSI B16.5 (RF)
✽ Face to Face Dimension : DIN 3202 / F1 TYPE
✽ Size Ranging: 1/2" ~ 4" (DN15 ~ DN100)
✽ With ISO 5211 Direct Mounting Pad
✽ Options: Lever operation / Locking Device
