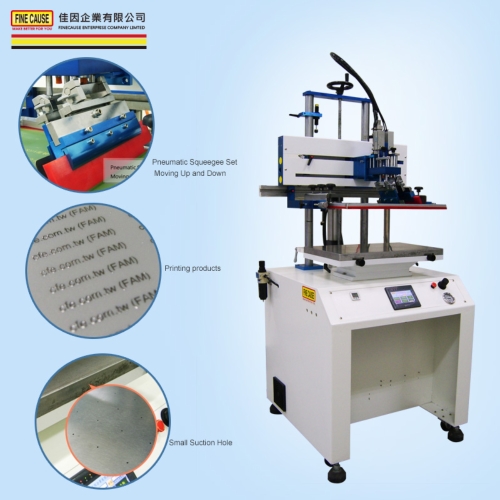

FA-400F Screen Printer w/Suction Function
- Model:
- FA-400F
- Country of Origin:
- Taiwan
- Color:
- 1
Detail Specifications / Descriptions
☑Products
65536 Color TFT Touch Panel
• PLC Control，Easy to Add Functions
• Adsorption Squeegee Clip (Patent No. M390871)，Easy to Move Squeegee Position，Esay to Disassemble
• Using Germany FESTO Rodless Pneumatic Cylinder
• Malfunction Detector / Screen Message Display
• Adjustable Squeegee Pressure
• Electronic Pressure Sensor. Auto Stop When the Pressure is Too Low and Shown on Marquee.
• Pneumatic Squeegee Stand / Moving Up and Down
Suitable For:
Printed Logo/Picture on All Kinds of Products. For Example: Telephone Keypad, SD Card, MP3, Remote Control and Etc. Plastic, Ceramics and Metal Products
Select the Suction Function, You can Print Lighter Products Like Paper, PVC Film, Acrylic and Etc.
☑Speciflcation
Model：FA-400F
Color：1
Max. Print Area (mm)：L:250 W:300
Capacity / hr：600~1800 Pcs
Dimension (cm)：L:80 W:60 H:180
Net W.：205 Kgs
