DAYTIME RUNNING LIGHT

DAYTIME RUNNING LIGHT

Model:

WE-DRL006

Country of Origin:

Taiwan

Material:

PC, ABS, ALUMINUN


详细规格及用途描述
Daytime running light for universal use

Size : 215mm x 47mm x 23mm / per piece
LED : "CREE" LED, 7.5W / 5pcs of each daytime running light

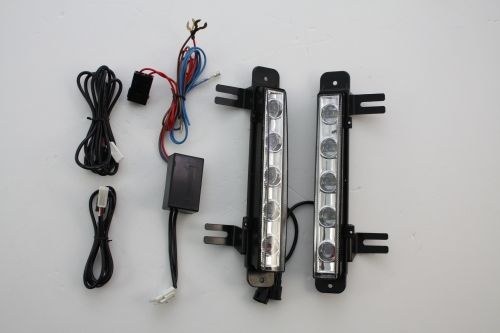

component : 1. 2pcs / set, 5pcs LED of one daytime running light
2. 1pc fixed ampere control set
3. 2pcs wires
4. 2pcs #304 stainless steel support
5. 2pcs 3M double size tape
Control light : 100% light on during the head light off and 50% lighted on when the headlight on
Connecting : To connect the power to Battery directly so easy so convenience or can
connect to ACC

HOW TO TEST THE LED LIGHT OF THE DRL :
1. When you do test the DRL to be required at the same functions as the DRL on the car. You also have to be required to connect the RH and LH DRL to the control unit at the same time. Then connect to the power supply and lighted on the both side of DRL will be lighted on. Otherwise the DRL will be not working.
2. When the DRL continue to power on and you release one side of DRL then another side DRL will be also not working. But when you plug the released side DRL back then re-power on the both side of DRL will be lighted on again.
3. First to release both side of DRL then plug only one side DRL again, you will find the DRL will be micro light and short working and no more lighted on again. Next you try to plug both side of DRL back again then re-power on and the both side of DRL will be lighted on again.
4. Please refer
