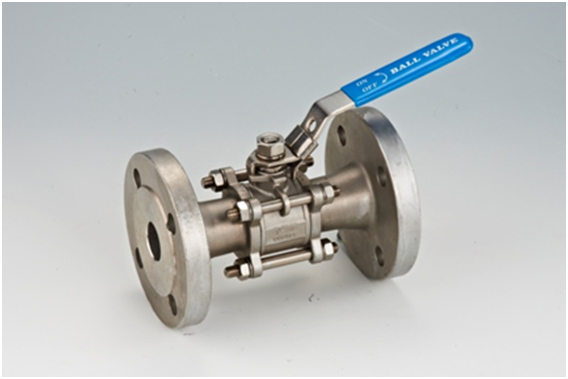

3 pcs. Flange Ball Valve
- Model:
- JP-611
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
Size:1/2”~4”
Materia:
AISI SS316、SS304
ASTM A351、CF8M 、CF8
JIS SCS14、SCS13
DIN 1.4408、1.4308
ASTM A216-WCB
Features:
Full port
Investment casting bady and cap
Face to face:
ANSI B16.10
DIN 3202
Flange end:
ANSI B16.5 CLASS 150LBS
DIN 2633 PN16/PN40
Seat ptfe(rptfe)
Blow-out proof stem
Max working pressure:
1/2”~2”1000psi(63bar)
2-1/2”~4”800 psi(40bar)
Locking device
Temperature:-4゚f ~356゚f(-20゚c~180゚c)
