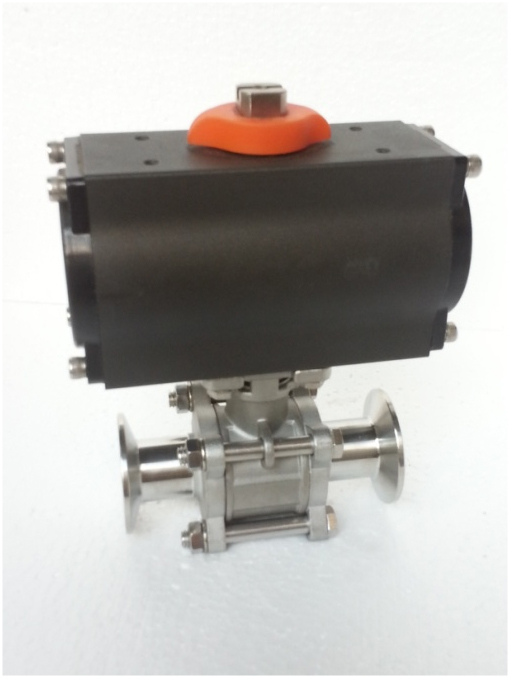

3 Pc. 2 Way Ball Valve With Pneumatic Actuator
- Model:
- JPF-BV321
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
WITH ISO 5211 DIRECT MOUNTING PAD
SIZE：1/2”~4”
STAINLESS STEEL
MATERIAL：
AISI SS316、316L
ASTM A351 CF8M、CF3M
DIN EN10213 1.4408、1.4304
FEATURES：
INVESTMENT CASTING BADY AND CAP
FULL CAVITY FILLED SEATS
BLOW-OUT PROOF STEM
CLAMP END：3A STANDARD；BUTT WELD END OTHER SMS,ISO,DIN
MAX WORKING PRESSURE：
1/2”~2”1000 PSI(63BAR)
2-1/2”~4 800 PSI(40BAR)
TEMPERATURE：-4ﾟF ~356ﾟF(-20ﾟC~180ﾟC)
INSIDE PORT POLISH RA≦0.4µm
