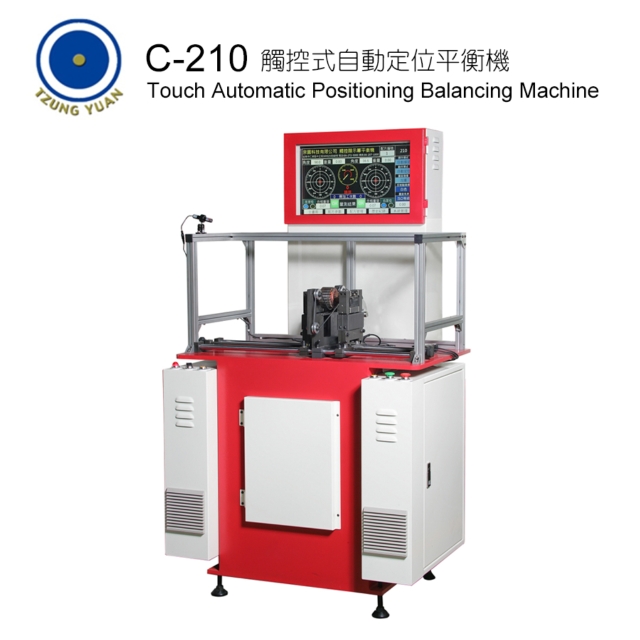

Touch Automatic Positioning Balancing Machine

Touch Automatic Positioning Balancing Machine

Hot
Model:
C-210

Detail Specifications / Descriptions

Use for:
Treadmill cylinder. Motor rotor

Features :
Program control with PLC-based, with 22 "Touch HMI, staff
parameter setting digitization.
 Accessories store 20 groups set
Window displays various settings and display digitized
unbalanced angle, weight, speed.
Can be set to measure the composition of soil need to fill up or down position to facilitate the staff fill soil jobs.
Parts of balancing test done editing, you can output the
external computer storage.
Deck, external storage backup program, do inputs.
est time can be set, the test results can be automatically
memory, and shall possess Print.
Deck, the test results data output port to USB or SD card-based.

Model
C-210
Weight range of workpiece
0.5 ~ 10 kg
Workpiece diameter
400 mm
Distance between bearings
700 mm
screen
22 (inch)
Laser Scanner
Scanner(Optional)
Balancing speed RPM 800 ~ 3000 RPM
Accuracy G0.4
High sensitivity sensor Inductive Gauging Sensor * 2
Speed measurement photoelectric sensor White / Black
Laser light length
<500 mm
