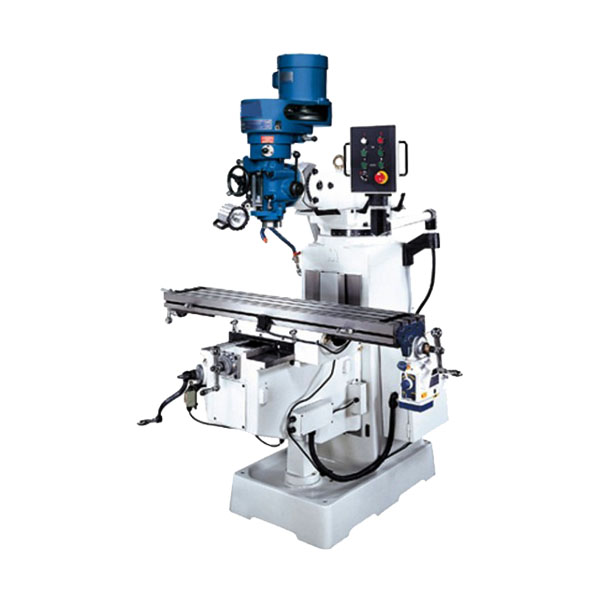

Taiwan Made Vertical Turret Milling

Taiwan Made Vertical Turret Milling

Hot
Model:
MW0800-037
Country of Origin:
Taiwan
Material:
To be advised
Color:
Final detail to be provided on formal quotation sheet

Detail Specifications / Descriptions

Features

Max. Table load: 250-300 kgs
Wide saddle 650 x 240mm
Headstock swivel 45 ° (R&L, F&R)

Description

Milling Machine of A model: with Step Speed Head; B model: Variable Speed Head
R8 & NST30 Spindle Tapers are available
With solid construction for efficient working

Specification




ITEMS
MW0800-037A
MW0800-037B


TABLE
WORKING SURFACE
1270x 254


T SLOT (WxNO.xPITCH)
16x 3x 63


TRAVEL
XxYxZ-MANUAL
775x 400x 406


XxYxZ-AUTO
700x 400x 406


SPINDLE
SPINDLE NOSE
R8 or NST 30


STEPS
8
VARIABLE


SPINDLE SPEED RPM
80-2720
80-3800


SWIVELLING ANGLE
45° (R&L)


QUILL TRAVEL
127


QUILL FEEDS/REV
0.04/ 0.08/ 0.15


SPINDLE NOSE TO TABLE
40-446


SPINDLE CENTER TO COLUMN
200-680


CROSS TRAVEL OF RAM
480


HORIZONTAL ROTATION OF RAM
360°


MOTOR
VERTICAL SPINDLE
3HP-4P
3HP-4P


COOLANT PUMP
1/8HP-2P


SIZE
MACHINE (LxWxH)
1500x1500x2200


NET WEIGHT(KGS)
1280




Standard Accessories:

Tool and tool box
One shot lubrication
Chip cover front and rear
Saddle size: 650 length

Optional Accessories:

X,Y power feed unit
Coolant equip with tray
Electric with control box
Table elevating motor
Spindle taper N.S.T. 40 with Quill dia. 100 mm

The product pictures are for your reference only: final spec & accessories based on formal quotation
