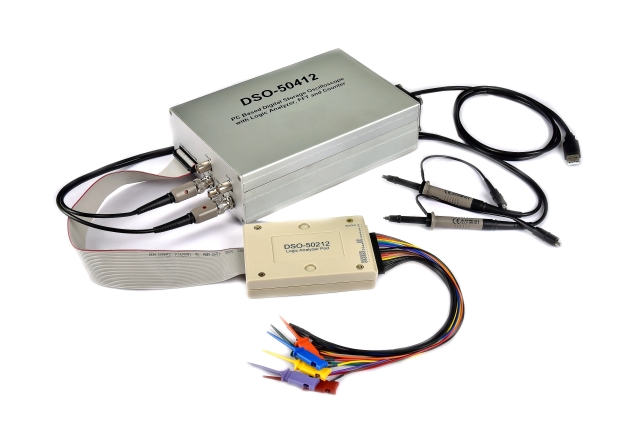

digital storage oscilloscope
- Model:
- DSO-50412M
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
PC Based USB Interface (DSO, Logic Analyzer, FFT Spectrum Analyzer).
Analog Channel : 4Ch (Ch.A1, Ch.A2, Ch.A3, Ch.A4).
Digital Channel : 12Ch (D0 ~ D11) from Logic Analyzer Pod.
(Sampling Rate 500MHz, 2Mega Bytes Memory).
Input Bandwidth : DSO (Ch.A1, Ch.A3 200MHz, Ch.A2, Ch.A4 125MHz).
Logic Analyzer (D0 ~ D11 150MHz).
Trigger : Pulse width count, TV Horizontal Synchronous count (DSO).
I²C, SPI (Logic Analyzer).
Trigger Qualify : 0, 1, X (don't care) settings for all digital channels.
Repetitive Mode : Up to 20GHz.
FFT Spectrum Analyzer : 125MHz (Fast Fourier Transform).
Electronic Counter : Max. 7 digital Resolution.
X-Y Plot : Allow to graph one channel to another.
Mathematics : +, -.
Multi-Window : Yes.
Operate : Mouse.
Memory : 4Ch 2Mega Bytes (Scope), 12Ch 2Mega Bytes (Logic Analyzer).
Input Impedance : 1MΩ/15pf (DSO), 100KΩ/2p (Logic Analyzer).
Sensitivity : 5mv/div to 2v/div.
Sampling Rate : 2Ch 1Hz to 1GHz, 4Ch 1Hz to 500MHz.
Threshold Voltage : -2v to +6v.
External Clock : 0 to 50MHz 100KΩ/2pf, +/-50Vmax.
Power Supply : DC Adapter 12V/2A.
Net Weight : 1.8 KGS.
Size (Dimension) : 225mm x 132mm x 60mm (Aluminum Case).
