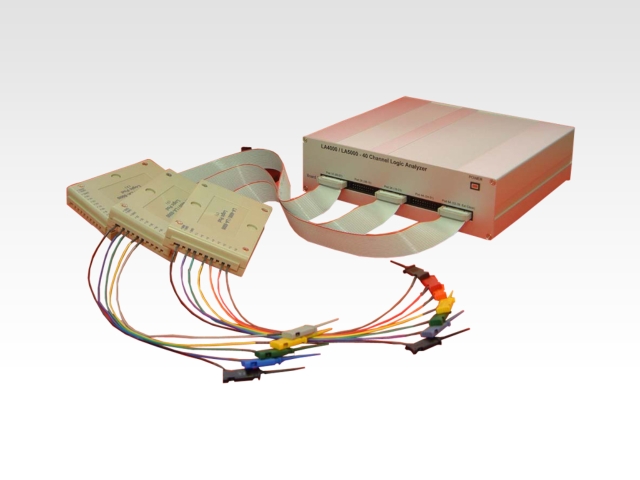

logic analyzer
- Model:
- LA-5540
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
PC Based USB Interface (Logic Analyzer, Pattern Generator).
40 Channels Logic Analyzer, Pattern Generator is optional.
Pattern Generator Type Ι (TTL Level only).
Pattern Generator Type Π (Adjustable Output Voltage +1.5v ~ -4.54v).
Frequency : 40Ch 1Hz to 250MHz 256K Bytes Memory.
24Ch 500MHz 512K Bytes Memory.
Max Input Bandwidth : 100MHz.
Max Input Voltage : ±150v.
Trigger : 16 Levels 160Ch Simple.
Input Impedance : 200KΩ≦5pf.
Threshold Voltage : 12Sets -6.4v to +6.4v.
External Clock : 8Ch 0 to 80MHz.
Size (Dimension) : 210mm x 215mm x 70mm
