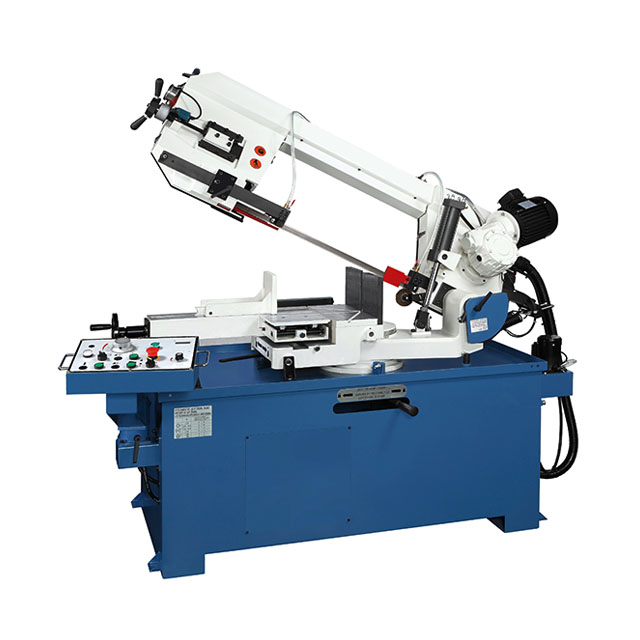

20” Semi-Auto Horizontal Bandsaw

20” Semi-Auto Horizontal Bandsaw

Model:

MW0603-026

Country of Origin:

Taiwan

Material:

To be advised

Color:

Final detail to be provided on formal quotation sheet

Minimum Order:

quantity negotiable- please enquire with us

Delivery Lead Time:

To be advised

Delivery FOB Port:

To be advised

Payment Condition:

T/T,Western Union


详细规格及用途描述

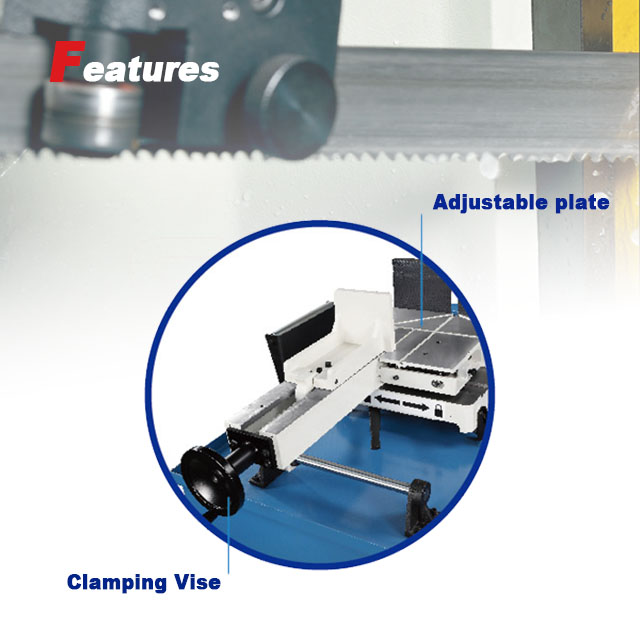

Feature

Dual miter band saw with high cutting precision at 0°- 45°-60° angle both on the left and right side
Adjustable plate to support material to increase precise and perpendicular
Motor inverter controlled variable speed drive system allows the operator to easily fine tune the blade speed

Description

Install with swing away control panel houses major Semi-Auto Band Saw controls
Use motor inverter to control variable blade speed
Manual vise clamping

Specification

Cutting Capacity (H x W)
(1) 90° ● 350 mm ██ 500 x 320 mm
(2) 45°● 350 mm █ 240 x 240 mm ██ 365 x 240 mm
(3) 60°● 240 mm █ 135 x 135 mm ██ 240 x 135 mm
(4) L45°● 240 mm █ 200 x 200 mm ██ 350 x 200 mm
Blade Size: 27 x 0.9 x 3860 mm
Blade Speed: 20 ~ 85 MPM
Blade Motor: 3HP
Hydraulic Motor: 1/2 HP
Coolant Motor: 1/8 HP
Table Height: 880 mm
Packing Size (L x W x H): 2286 x 886 x 1676 mm
N.W. / G.W.: 630/740 KGS
The product pictures are for your reference only: final spec & accessories based on formal quotation
