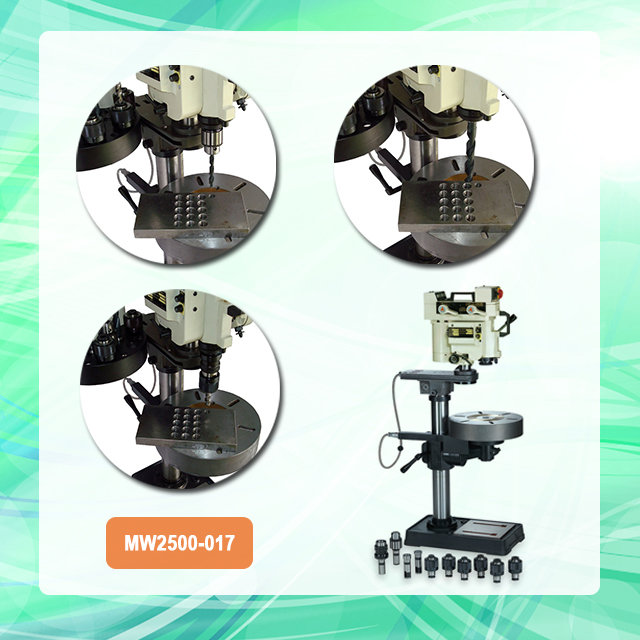

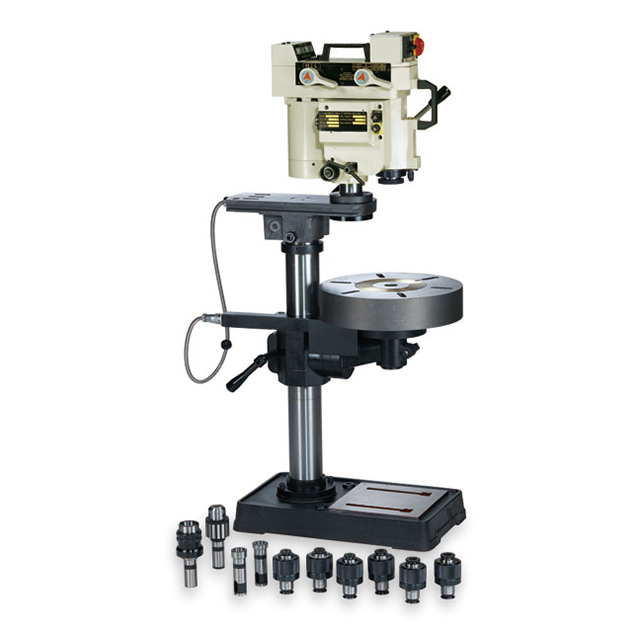

High Efficient Vertical Magnetic Tapping and Drill Press

High Efficient Vertical Magnetic Tapping and Drill Press

Hot
Country of Origin:
Taiwan
Material:
To be advised
Color:
Color of product based on formal quotation sheet

Detail Specifications / Descriptions

Features

Working table of this drill & tap machine is equipped with an electronic magnet to attract and release work-piece quickly
Adjustable drilling handle allow users to change drilling angle more conveniently
Tapping adaptors are with torsion control to prevent tap bits from being broken
With revolving located device makes the replacement of cutters working faster & more precisely
The drill sleeves, tap fixtures, and borer holders are all with rapid-adaptors easy for replacement of cutters

Description

With Voltage indicator, the user can easily tell power condition for the maintenance of machine
Users may choose either withdraw free or withdraw end function of tapping based on different needs of different work-pieces
The motor is designed with circuit breaking protection
If any of the wires for 3PH power source is faulty, this unit can cut off the current to prevent motor from being burn out
Compliant with CE standard (Optional)

Specifications

Drill Capacity: 1/8"~1" (3~25mm)
Tapping Capacity: 3/8"~7/8" (10~22mm)
Power: 220V/230V, 3-Phase, 1-1/4 HP
R.P.M.: (H) 705 / 405 (L) 100 / 58
Feeding Stroke: 100mm
Body Stroke: 100mm
Distance of Spindle End to Base Plate: 725mm
Distance of Spindle End to Table Top: 450mm
Diameter of Column: 80mm
Diameter of Table: 330mm
Base Working Area: 440 x 300mm
Table Stroke: 380mm
Height: 1075mm
Fittings Weight: 8kgs
Machine Weight: 109kgs

Standard Accessories:
(1) Torsion Fixture Standard Fitting: 6pcs
(2) Drill Sleeve Standard Fitting: 3pcs
The product pictures are for your reference only: final spec & accessories based on formal quotation
