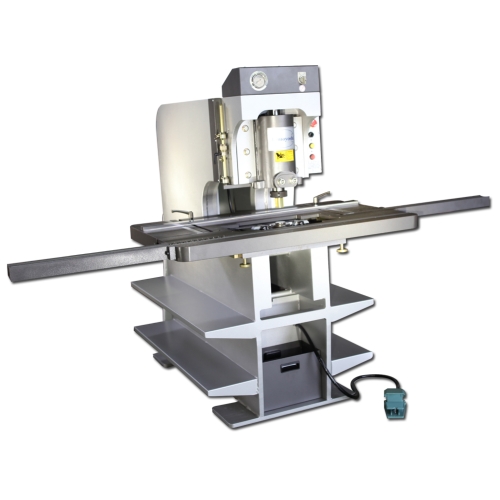

Hydraulic Punch Press
Hydraulic Punch Press


Detail Specifications / Descriptions

.With a throat depth of 500mm, deeper than conventional models, the unit features low noise and low breakdown rates.
.Performs quick mold changing and punching, this unit can also handle accurate positioning.
.Different from conventional model, this unit can perform draft hole punching, and electric fan hole, ammeter hole punching.
.Being easy to operate and assuring absolute safety, this unit can help increase working efficiency and save time, having a punch capability of 4mm thick.
.With a work table of 800mm wide and 2500mm long which can be adjusted according to the mold height, easy to operate. At the bottom of this unit, there are six tiers of racks for mold holding.

Model: A125-500B
Work Table (L x W): 800 x 2500 mm
Work Table (L x W): 500 mm
Motor: 3HP/6units
Max. Punching Aperture: ø180 mm
Min. Punching Aperture: ø2.6 mm
Max. Punching Aperture: 12 mm( ø20)
Max. Force: 25 tons
Min. Punching Time (L: 10 mm): 100 times / minute

Package Measurement (L x W x H): 1400 x 1300 x 1800 mm

Total Machine Weight: 1600kgs

Hydraulic Punch Press
