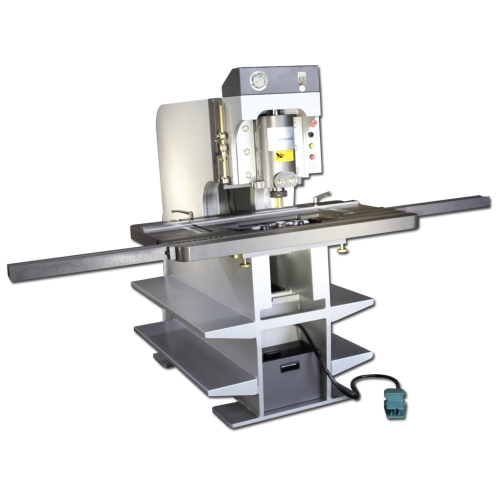

Hydraulic Punch Press

Hydraulic Punch Press

Model:
A125-750B

Detail Specifications / Descriptions

Features:
.With a throat depth of 750mm, deeper than conventional models, the unit features low noise and low breakdown rates.
.Performs quick mold changing and punching, this unit can also handle accurate positioning.
.Different from conventional model, this unit can perform draft hole punching, and electric fan hole, ammeter hole punching.
.Being easy to operate and assuring absolute safety, this unit can help increase working efficiency and save time, having a punch capability of 4mm thick.
.With a work table of 1050mm wide and 2500mm long which can be adjusted according to the mold height, easy to operate. At the bottom of this unit, there are six tiers of racks for mold holding.

Model: A125-750B
Work Table (L x W): 1050 x 2500 mm
Work Table (L x W): 750 mm
Motor: 3HP/6units
Max. Punching Aperture: ø180 mm
Min. Punching Aperture: ø2.6 mm
Max. Punching Aperture: 12 mm( ø20)
Max. Force: 25 tons
Min. Punching Time (L: 10 mm): 100 times / minute
Package Measurement (L x W x H): 2500 x 1950 x 1730 mm
Total Machine Weight: 3000kgs

Hydraulic Punch Press
