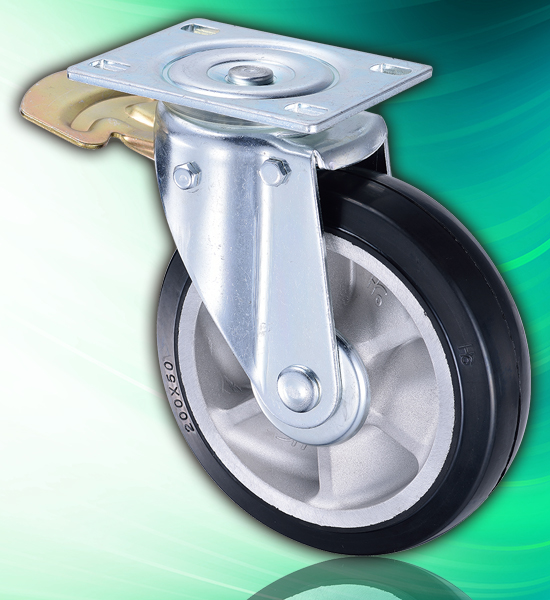

Heavy Machine Moving Heavy Duty Roller Rubber Wheels 8 inch
Heavy Machine Moving Heavy Duty Roller Rubber Wheels 8 inch Hot

Model:A8202-HG Country of Origin:Taiwan Material:Elastic Rubber

Detail Specifications / Descriptions

Type:Rear Total Lock Caster
Wheel Diameter(G) x Width:8x2 inch (200x50 mm)
Height(H):242 mm
Load Capacity:450 kg
Bolt Hole Center(AxB):77x112 mm
Plate Size(DxE):113x142 mm
Bolt Hole(P):Φ12x20
Bearing:#6303 Double Ball Bearings
Fork Structure:Pressed Steel;Zinc Plated
Eccentricity:55 mm
Wheel Core:Aluminum Core
Weight:4.537 kg
Others:Steel Wheel Cover

Wheel: Elastic Rubber Wheel, with the features of high elasticity, good load capacity and wear resistances.
Wheel Core: Aluminum Turbine Core enhances the load capacity and offers the better rollability.
Bearing: #6303 double ball bearings to enhance the rotation.
Fork: Rear Total Lock with top plate. Pressed steel and integrally formed. Zinc plated.
Others: Steel wheel covers to prevent the dust, water and other materials.
