Model:HO-538-2-HG Country of Origin:Taiwan Material:Elastic Rubber
Detail Specifications / Descriptions

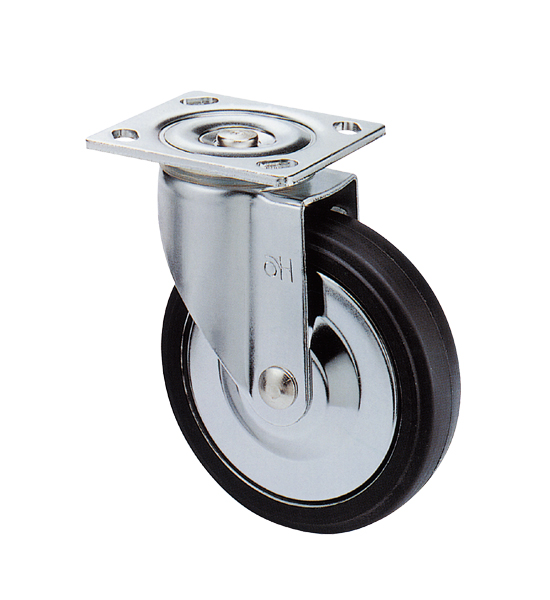

Type:Side Wheel Brake Caster
Wheel Diameter(G) x Width:5x1½ inch (125x38 mm)
Height(H):165 mm
Load Capacity:250 kg
Bolt Hole Center(AxB):70x85 mm
Plate Size(DxE):105x115 mm
Bolt Hole(P):Φ12x20
Bearing:#6202 Double Ball Bearings
Fork Structure:Pressed Steel;Zinc Plated
Eccentricity:42 mm
Wheel Core:Nylon Core
Weight:1.98 kg
Wheel: Elastic Rubber Wheel, with the features of high elasticity, good load capacity and wear resistances.
Wheel Core: Nylon Core to increase the load capacity and the stability when moving.
Bearing: #6202 double ball bearings and sleeve bearings to improve the rolling and stability.
Fork: Side Wheel brake with top plate. Pressed steel and integrally formed. Zinc plated.
The standard set of casters for Ho Caster trolley. (HTP-500)
