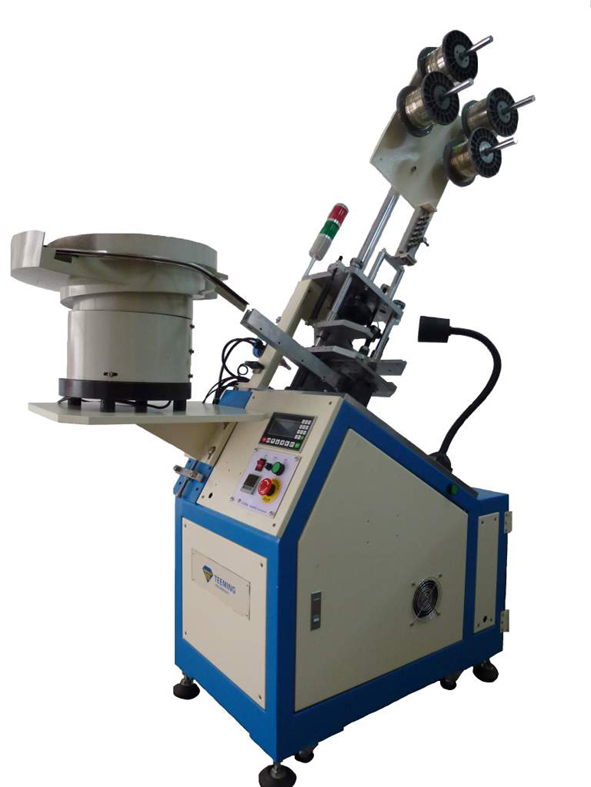

AIP-28 AUTOMATIC PIN INSERTING MACHINE
- Model:
- AIP-28
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
Technical Specifications:
Power Source: AC220V,380V 3Phase
Machine Dimension :660 (L) x 1300 (W) x 2100(H)mm
Weight:180KGS
Air pressure:6KGS/ c㎡
Pin diameter: 0.3mm-1.0 mm
Cycle time :40-60 pcs./min.
Pin Type : Round Square and flat pin
Total Pins : 20 Pins
Suitable products: Straight and L pin
OPTIONS: Bowl feeder, Heating from loading shoot Features:
(1)Manual loading
(2)Automatic insertion
(3)Automatic swaging
(4)Automatic unloading
