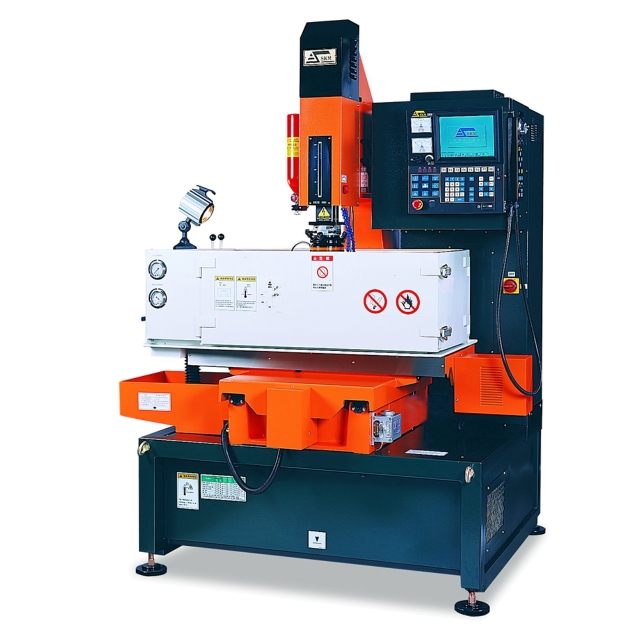

K60
- Model:
- K60
Detail Specifications / Descriptions
The X. Y& Z axis utilizes AC servo motor.
Multi-cavities machining, ORBIT-CUT machining & Helix machining.
A.T.C. (Automatic Tool change) & C-axis machining available.
The Circle Angle of Sparking is lower than 0.02mm.
Multi-cavities machining, ORBIT-CUT machining & Helix machining.
A.T.C. (Automatic Tool change) & C-axis machining available.
The Circle Angle of Sparking is lower than 0.02mm.
The best surface roughness (Ra) is better than 0.1 µm.
Multi-side ORBIT-CUT machining for X, Y & Z axis
High speed and long distance jumping.
Special Rib shape machining function.
Multi-side ORBIT-CUT machining for X, Y & Z axis
High speed and long distance jumping.
Special Rib shape machining function.
| Specification | K60 |
|---|---|
| X,Y-travel | 400 x 300 mm |
| Z-travel | 300mm |
| Table dimension | 660 x 380 mm |
| Work table dimension | 900x560x300 mm |
| Maximum table-quill distance | 500 mm |
| Maximum electrode weight | 40 kgs |
| Maximum table loading | 800 kgs |
| Dielectric tank capacity | 400 Liter |
| Filters | 2 pcs |
| Machine weight | 1900 kgs |
| Machine Height | 2260 mm |
| Nominal Current | 30A/5A . 45A/5A . 60A/5A |
| lnput voltage | 220 / 380 / 415 / 440 V |
| Connected rating | 4 KVA / 5.5 KVA / 7 KVA |
| Maximum stock removal rate | 200 / 300 / 400 mm^3/min |
| Bst surface roughness | Ra≤0.1μm |
| Best electrode wearing rate | <0.2% (specific equip<0.1%) |
