S50
S50

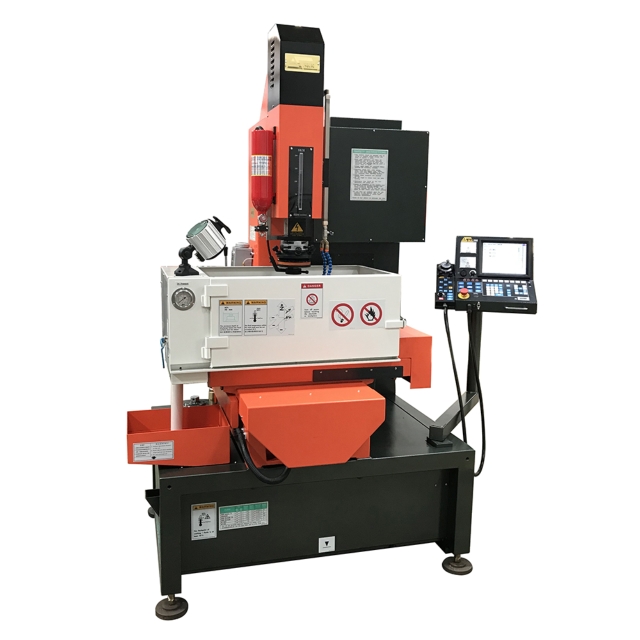

Model:S50

Detail Specifications / Descriptions

The X. Y& Z axis utilizes AC servo motor.
Multi-cavities machining, ORBIT-CUT machining & Helix machining.
A.T.C. (Automatic Tool change) & C-axis machining available.
The Circle Angle of Sparking is lower than 0.02mm.
The best surface roughness (Ra) is better than 0.1 µm.
Multi-side ORBIT-CUT machining for X, Y & Z axis
High speed and long distance jumping.
Special Rib shape machining function.


Specification S50
X,Y-travel300 x 200 mm
Z-travel300mm
Table dimension600 x 360 mm
Work table dimension720x460x260 mm
Maximum table-quill distance490 mm
Maximum electrode weight30 kgs
Maximum table loading600 kgs
Dielectric tank capacity200 Liter
Filters2 pcs
Machine weight1650 kgs
Machine Height2240 mm
Nominal Current30A/5A . 45A/5A . 60A/5A
lnput voltage220 / 380 / 415 / 440 V
Connected rating4 KVA / 5.5 KVA / 7 KVA
Maximum stock removal rate200 / 300 / 400 mm^3/min
Bst surface roughnessRa≤0.1μm
Best electrode wearing rate<0.2% (specific equip<0.1%)

S50
