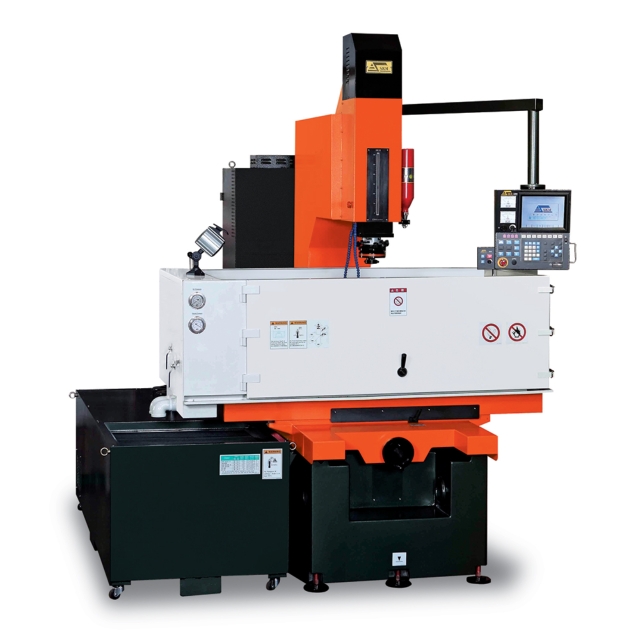

T120 ZNC
- Model:
- T120 ZNC
Detail Specifications / Descriptions
| Specification | T120 |
|---|---|
| X,Y-travel | 600 x 500 mm |
| Z-travel | 300+(290) mm |
| Table dimension | 1100 x 620 mm |
| Work table dimension | 1650x1000x500 mm |
| Maximum table-quill distance | 850 mm |
| Maximum electrode weight | 60 kgs |
| Maximum table loading | 2600 kgs |
| Dielectric tank capacity | 1000 Liter |
| Filters | 3 pcs |
| Machine weight | 3500+290 kgs |
| Machine Height | 2580~2870 mm |
| Nominal Current | 60A/5A.90A/5A.120A/5A |
| lnput voltage | 220 / 380 / 415 / 440 V |
| Connected rating | 7KVA / 10KVA / 13KVA |
| Maximum stock removal rate | 400/600/800 mm3/min |
| Bst surface roughness | Ra≤0.1μm |
| Best electrode wearing rate | <0.2% (specific equip<0.1%) |
