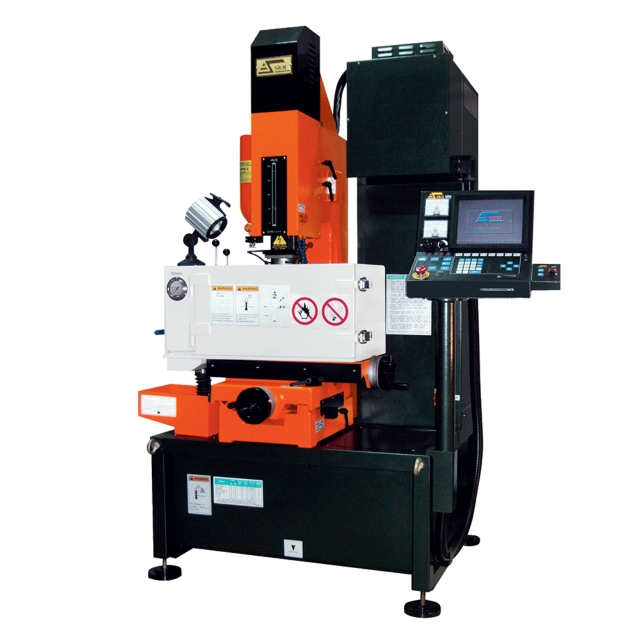

T30 ZNC
- Model:
- T30 ZNC
Detail Specifications / Descriptions
| Specification | T30 |
|---|---|
| X,Y-travel | 200 x 150 mm |
| Z-travel | 200 mm |
| Table dimension | 360 x 220 mm |
| Work table dimension | 520x330x240 mm |
| Maximum table-quill distance | 440 mm |
| Maximum electrode weight | 20 kgs |
| Maximum table loading | 350 kgs |
| Dielectric tank capacity | 120 Liter |
| Filters | 2 pcs |
| Machine weight | 760 kgs |
| Machine Height | 2100 mm |
| Nominal Current | 30A/5A.45A/5A.60A/5A |
| lnput voltage | 220 / 380 / 415 / 440 V |
| Connected rating | 4KVA / 5.5KVA / 7KVA |
| Maximum stock removal rate | 200/300/400 mm3/min |
| Bst surface roughness | Ra≤0.1μm |
| Best electrode wearing rate | <0.2% (specific equip<0.1%) |
