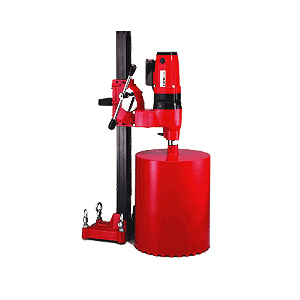

Features of the base
- Standard 210Lx170Wx45T mm Aluminum die casting base is rugged, but lightweight and portable.
- Base is reinforced for added rigidity & strength.
- Four base leveling screws for precise drilling alignment, even on the rough surfaces.
- Center mounting slot accommodates anchor bolts, or an optional vacuum assembly hol the machine securely on the working surface.
- Minimum distance to centerline of the hole from wall is 45 mm.
Features of the column
- Rigid steel column. 1,000 mm Lx55 mm square, bolts securely into the base.
- Optional built-in jackscrew provides stability for ceiling or wall bracing.
- Gear rack is screwed solidly to the front of the column.
Features of the drilling head
- 2 speed gearbox for drilling the suitable material.
- Precision rack and pinion gear system.
- Single-lever" slip-through" feed handle.
- Locking bolts on the carriage locks the head assembly in four positions.
- Sealed motor switch with overload protection. * Standard maximum bit capacity of 355 mm.
- Optional PRCD device.
|Company:||TING FONG ELECTRIC & MACHINERY CO., LTD.|
|Address:||No. 16, Lane 135, Chung Hsing N. St., San Chung Dist., New Taipei City, Taiwan 241|
