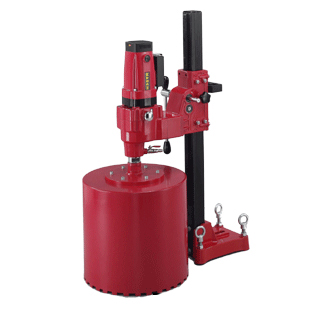

Features of the base
- Standard 165Lx125Wx30T mm Aluminum die casting base is rugged, but lightweight and portable.
- Base is reinforced for added rigidity & strength.
- Four base leveling screws for precise drilling alignment, even on the rough surfaces.
- Center mounting slot accommodates anchor bolts, or an optional vacuum assembly the machine securely on the working surface.
- Minimum distance to centerline of the hole from wall is 33 mm.
Features of the column
- Rigid steel column. 700mm Lx40 mm square, bolts securely into the base.
- Optional built-in jackscrew provides stability for ceiling or wall bracing.
- Gear rack is welded solidly to the back of the column.
Features of the drilling head
- Precision rack and pinion gear system.
- Single-lever " slip-through" feed handle.
- Whole piece design of the carriage & drilling motor with Aluminum die casting.
- Sealed motor switch with overload protection.
- Standard maximum bit capacity of 120mm.
- Optional PRCD device.
