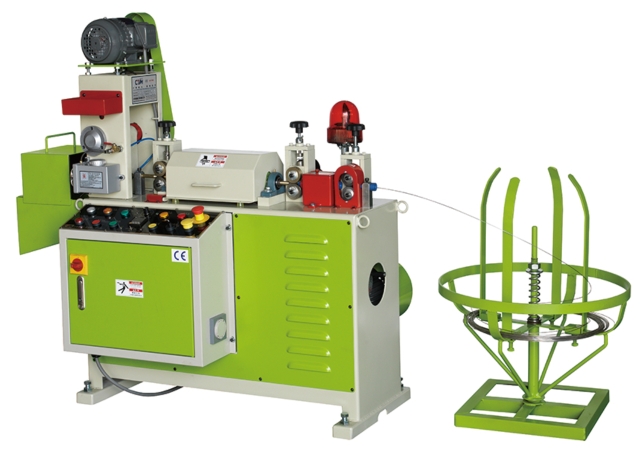

A Type Automatic Wire Cutting Machines
A Type Automatic Wire Cutting Machines

Model:CYA-101A Country of Origin:Taiwan

Detail Specifications / Descriptions

Two-way straight line model (preventing line from being rotated). Suitably used for NC spring machine, press connection. (Patented model)

  • 1. With strict quality control, best performance, durables and little breakdown rate.
  • 2. Sound is slight during running, no vibration and to install underground screws not required.
  • 3. Trough special design which is studied and improved for years, the easy operation goes with automatic control in high efficiency.
  • 4. Directly deciding its size as well as length, the cutting is accurate and flat.
  • 5. Straightness and cutting face is to meet international standard.
  • 6. Suitable for cutting the short shaft, for example: for cutting the spindle.

TypeCYA-101A
DIAMETER OF STRINGS1~1.8(m/m)
LENGTH OF STRINGS10~300(m/m)
CUTTING1/4HP
STRAIGHTENING1HP
FEEDING1/4HP
WEIGHTN.W200kg. G.W300kg
PACKING DIMENSIONS150(L)×60(W)×75(H)cm
