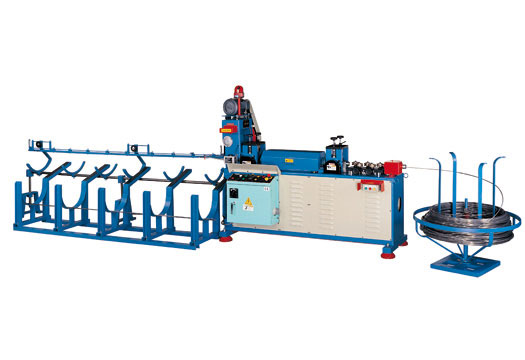

A Type Automatic Wire Cutting Machines
A Type Automatic Wire Cutting Machines

Model:CYA-104A Country of Origin:Taiwan

Detail Specifications / Descriptions

*Straightness and cutting face is to meet
international standard.
*Special specification can be custom-made on
request, and min. S: 5m/m, max. L:15M are
available to be produced.


1. With strict quality control, best performance, durables and little breakdown rate.
2. Sound is slight during running, no vibration and to install underground screws not required.
3. Trough special design which is studied and improved for years, the easy operation goes with automatic control in high efficiency.
4. Directly deciding its size as well as length, the cutting is accurate and flat.
5. Straightness and cutting face is to meet international standard.
6. Feeding mechanism adopts adjustable DISCO variable speed motor, and the speed can be adjusted freely.



   Type
   CYA-104A


   DIAMETER OF STRINGS
   4~8(m/m)


   LENGTH OF STRINGS
   50~3000(m/m)


   CUTTING
   2HP


   STRAIGHTENING
   7.5HP


   FEEDING
   1HP 12~72M/Min


   WEIGHT
   N.W1350kg. G.W1500kg


   PACKING DIMENSIONS
   200(L)×100(W)×165(H)cm
