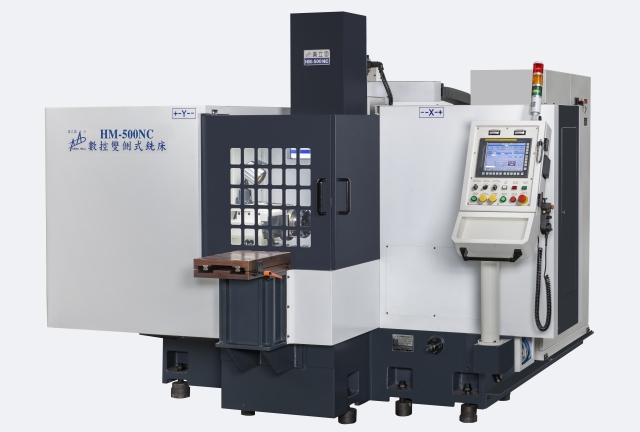

NC Double Sided Milling Machine
NC Double Sided Milling Machine

Model:HM-500NC Country of Origin:Taiwan

Detail Specifications / Descriptions

STANDARD FEATURES
■One piece rigid construction machine base.
■Heavy duty cutting spindle (Equivalent NT50) X and Y-axis.
■Z-axis precision linear guide for fast and rigid cutting.
■Spindle guides are TURCITE-B coated and precision scraped.
■5 axes control, Z (longitude) X,Y (L and R cutting spindle) ,A (index) and W (vertical clamping).
■HMI user friendly touch screen with dialogic data input, self alarm diagnosis and alarm message display.
■Precision index table: Dia. 320mm. 0°, 90°, 270°, 360°.
■Vertical clamp jig.
■Align stopper for easy setup the 90 degree of workpiece.
■Auto detecting device for measuring he workpiece before machining.
■Complete set of hydraulic system.
■Pneumatic system for air blow and detecting device.
■Screw type chip conveyor: 2 sets.
■LED work light.
■3 colors working condition light.
■Tool box with tools.
■Compression system for W-axis.

OPTIONAL EQUIPMENT
■6'(150 mm) R&L Cutters.
■CE specification.
■Spindle oil temperature control unit.
■Quick Response Code.
■Indexing degree of table 0° ~ 360° (5°).

NC Double Sided Milling Machine
