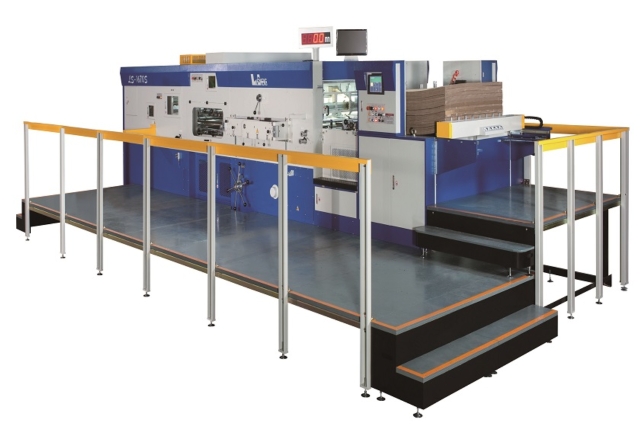

Automatic Corrugated Flat Bed Die Cutting Machines

Automatic Corrugated Flat Bed Die Cutting Machines

LS-1670 & 1670S
Country of Origin:

Detail Specifications / Descriptions

•The feeder with the suction pump makes curved paper smooth. By top-load and bottom-feed, feeding structure feeds paper successively and operates easily.
•High friction feeding wheels prevent damage to the printed paper.
•The hydraulic powered feeding table will make feeding corrugated board easy, with no more heavy lifting for the operator. (opt.)
Positioning Mechanism
•This improved in-feed system will provide very tight register tolerance. It is able to handle die cutting on not only corrugated board but also on printed board without a register problem.
•Specially designed roller system easily processes various thicknesses of paper and corrugated board.
•Special design side guide which is suitable for various thicknesses of paper and corrugated board; accurate and easy to adjust.
Die Cutting Sataion
•The easy setup system and center-line die register system will cut down the make-ready time dramatically.
•Safe die cutting frame design is easily installed and dismantled. Rotation dies frame design allows easy replacement of dies.
•Bottom mold plate can unload and reserve the cutting mold for next time use.
Stripping Mechanism
•Coordinates with the cutting station, the structure with no frame can be adjusted fast and accurately.
•Top unit can be disengaged when not in use.
Paper Collection Station
•Non-stop delivery allows changing of pallets without interrupting the running job, saving time.
•Paper counter with tape inserter for easy counting and effortless packing.
•High efficiency conveyor system allows longer machine running time and maximum production.
