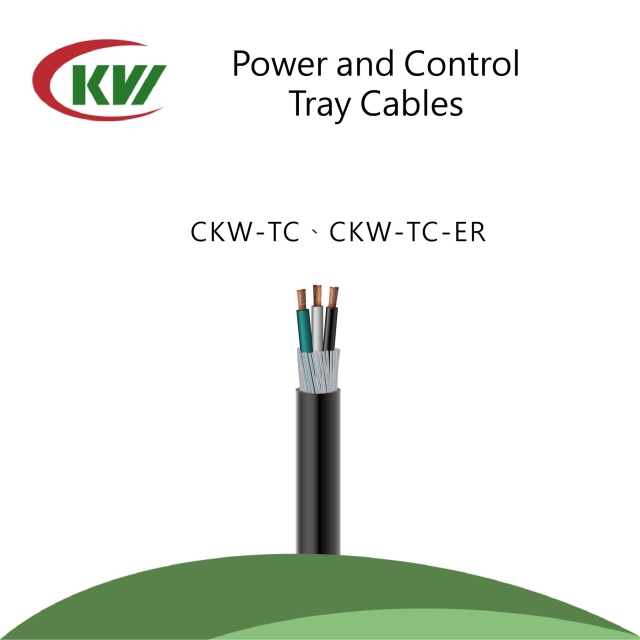

Power and Control Tray Cables-TC & TC-ER Cables
- Model:
- CKW-TC、CKW-TC-ER
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
Power and Control Tray Cables-TC & TC-ER Cables
Products Features：
(1) Safety and Strict QC management, Made in Taiwan.
(2) Excellent performance at temperature extremes, High heat and weather resistance.
(3) Excellent chemical and oil resistance.
(4) Extruded PVC or PVC+Nylon insulation available in colors, PVC jacket material provides tough, sun resistant, oil resistant, direct burial and high flammability.
Products Specifications：
● Rated voltage：600 V
● temperature：90 °C dry, 90 °C wet
● Specification：
• ASTM B3 Soft or Annealed Copper
• UL 83 Thermoplastic Insulated wires and Cables
• UL 1277 Electrical Power and Control Cable
• UL 1685-Flame Test
• UL 1581-Electrical Wires, Cables and Flexible Cords
• IEEE 1202/FT4-Vertical Tray Flame Test (70,000 Btu/hr)
Certifications：UL 66, UL 83, UL 1277
Product Application：
● Primarily used for power, control, signal, communication and lighting circuits in commercial and industrial enviroments.
● Suitable for installation in cable trays, supported by messenger wire in open air, raceways, channels, conduits and ducts.
● Approved for direct burial and outdoors in cable trays where sunlight resistant is required.
● Also may be installed in wet or dry locations or in areas exposed to chemicals and oils.
