CNC Profile Grinding Machine for Linear Guideway

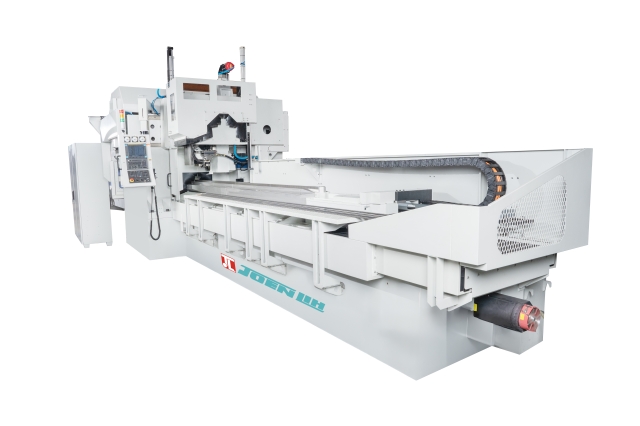

The 50400 CNC Linear Guide High Precision Grinding Machine is a machine used for rails above size 15, adopts a Double column structure, with its main structure cast from high-grade FC30 cast iron material, ensuring excellent structural rigidity. This ensures the machine maintains stable precision during long-term operation.

Inquire Now
The worktable utilizes a hydraulic control system, equipped with a diamond roller dresser, enabling simultaneous grinding of both sides and the track surface of the linear guide.

In addition, this machine has successfully obtained multiple domestic and international patents, making it suitable for various high-precision and high-tech industries.

-Features
1.Hydraulic Control System: Ensure high precision motion control and real-time adjustment flexibility. Helps maintain machining accuracy.
2.Double Column Structure: Possessing superior structural rigidity and reducing thermal effects ensures that the machine maintains extreme stability in precision during prolonged operation.
4.High Structural Rigidity: Cast with advanced FC30 cast iron material, the machine exhibits superior stability.
5.Enhance Processing Efficiency: Utilizing two sets of vertical grinding heads and one set of horizontal grinding head for simultaneous processing of three sides of the linear guideway.
6.Numerous Patents Globally: Acquired multiple patents including:
《Improvement of spindle arrangement structure of long-stoke gantry grinder》
《Improvement of rail arrangement structure for suspension saddle of spindle of machine tool》
《Improvement of machine tool chassis structure with dual support rails》
《Auxiliary support structure on intermediate section of extended-stroke driving bar of machine tool》
《Flanges of grinding wheels for a processing machine and the structure improvement of balancing weightings thereof》
《Improvement of rail arrangement structure of suspension type spindle of grinder》
《Double column type grinder structure having dual spanning column》

-Application
Grinds workpieces of types 15-65 with heights ranging from 14-53 mm, widths from 15-63 mm, and lengths up to 4000 mm.
