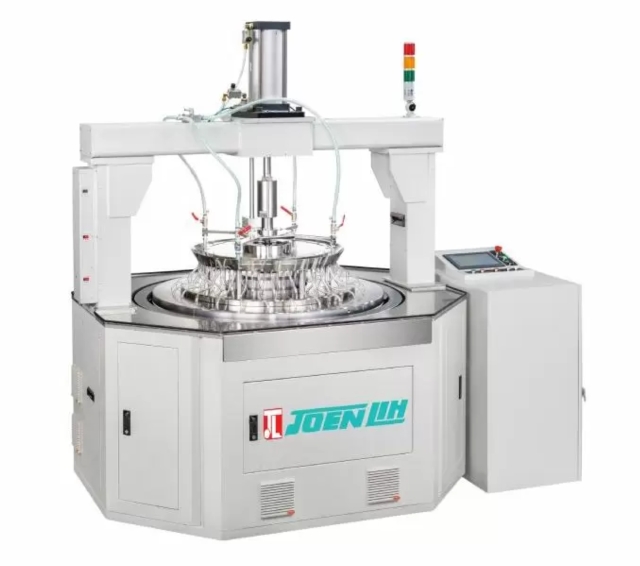

Double-sided Lapping / Polishing Machine

JL-D16
The JL-D16 double-sided grinding machine is an efficient surface processing device designed for various non-metallic and hard materials. It is suitable for surface processing of commonly used materials in semiconductor manufacturing, such as silicon wafers, quartz, silicon carbide, glass, and more.

Inquire Now
The JL-D16 is primarily utilized for double-sided grinding or polishing of flat workpieces. It can also be employed for processing workpiece thicknesses, with a minimum achievable thickness of 0.4mm. Additionally, the surface precision can reach 0.3μm, ensuring a high level of machining accuracy.

The innovative JL-D16 double-sided grinding machine combines both double-sided grinding and polishing functions, making it a comprehensive and efficient solution for surface treatment applications.

-Features
1.Grinding Mechanism: The lapping mechanism running is designed with a planetary type design to achieve the optimal lapping performance and surface finish.
2.Dual Functionality in One Machine: It can simultaneously perform double-sided grinding or polishing for flat workpieces, with a minimum processing thickness of 0.4mm. The surface precision can reach up to 0.3μm.
3.Multi-tasking of Workpieces: Five sets of carriers (planetary carriers) are employed to simultaneously hold multiple workpieces during the lapping process.
Intelligent Electrical Control System: The machine is equipped with a PLC controller, optionally 4.complemented by a touchscreen, ensuring user-friendly operation.

-Optional Accessories
The automatic thickness control.
PLC controller in combination with the use of the touchscreen.

-Application
Surface Treatment of Non-metallic and Hard Brittle Materials: Includes silicon wafers, quartz, SiC, glass, sapphire, ceramic substrates, as well as processing metallic materials such as aluminum, stainless steel, and mechanical seals.
