BED TYPE CNC MACHINING CENTER
BED TYPE CNC MACHINING CENTER

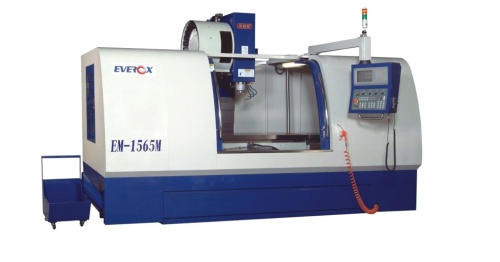

Model:EM-1565M

Detail Specifications / Descriptions

TRAVEL:
◎Longitudinal Travel-X:1500mm
◎Cross Travel-Y:650mm
◎Vertical Travel-Z:600/(700/800 Opt.)mm
TABLE:
◎Table Size:510×1900mm
◎T-Solts:18×80×5mm
◎Table load capacity:1200kgs
◎Speed feed::1-5000 mm/min
◎Rapid feed:10000 mm/min
SPINDLE:
◎Spindle Taper:BT40
◎Spindle speed:6000/8000(Opt.)rpm/min
◎Spindle nose to table::140-740/(840/940 Opt.)mm
◎Spindle Center to column:660mm
BALL-SCREW:
◎X×Y×Z axis:ø40×10×C5 mm
MOTOR:
◎Spindle Motor:15 or 7.5/ 11kw HP
◎X,Y,Z axis servo motor:1.3/2(Opt.)kw
◎Coolant pump:1/4HP

BED TYPE CNC MACHINING CENTER
