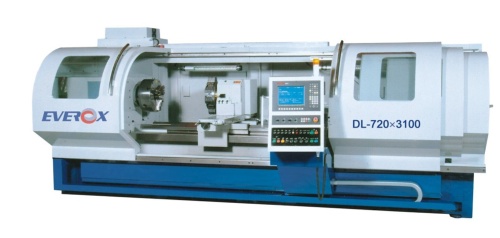

POWERFUL FLAT BED CNC LATHES
POWERFUL FLAT BED CNC LATHES Hot

Model:DL-600 X 2100

Detail Specifications / Descriptions

Working Capacity:
◎Swing over bed: 610 mm
◎Swing over cross slide: 360 mm
◎Swing over gap: 790 mm
◎Dist. between centers: 1100/ 1600 /2100 /3100 /4100 mm
◎Width of bed: 410 mm
HEADSTOCK:
◎Spindle bore:Ø 83/ 105 m/m
◎Spindle nose:A2-8 or D1-8
◎Rang of spindle speed :40-2000 rpm
◎No. of spindle speed:3
CARRIAGE:
◎Cross travel(X axis):450mm
◎Longitudinal travel(Z axis):975/1475/1975/2975/3775mm
◎AC servo motor(kw):X:1,Z:2
◎Rapid feed(m/min):X:7 , Z:10 / X:7 , Z:8
◎Range of feeds(mm/rev.):X/Z:0.001-500
TURRET:
◎No. of tools:H4/V8
◎Tool size:25 mm
Tail Stock:
◎Quill dia.:Ø 80/ 105(opt.)mm
◎Quill stroke:180 mm
◎Tailstock taper:MT#5
MOTOR
◎Mainspindle motor:20/25(opt.)HP
◎Coolant pump motor:1/4 HP
◎Lubricating pump:1/16 HP
BALL SCREW:
◎X axis: ø25×5×C5
◎Z axis: ø50×10×C5

POWERFUL FLAT BED CNC LATHES
