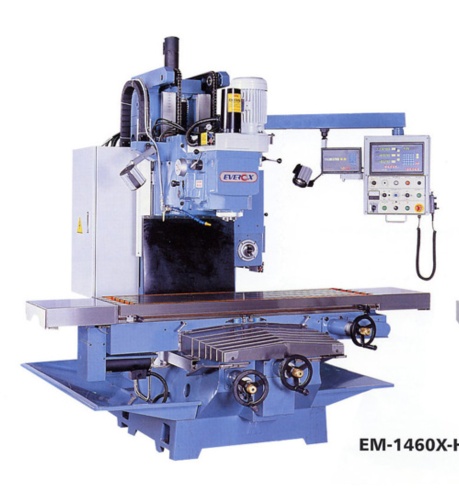

HEAVY DUTY BED TYPE MILLING MACHINE
HEAVY DUTY BED TYPE MILLING MACHINE

Model:EM-1460X-H

Detail Specifications / Descriptions

TRAVEL:
◎Longitudinal travel-x:1400mm
◎Cross travel-Y:600mm
◎Vertical travel-z:650/750/850/950mm
TABLE
◎Table size:1702×410mm
◎T Solts:4×18×70mm
◎Table load:1200kgs
◎Rapid feed:X,Y,Z axis 10-3000/4800mm/min
SPINDLE:
◎Spindle taper:NT40
◎Spindle speed:70-3500(16 steps)rpm/min
◎Distance from spindle end to eadle:750/850/950/1050mm
◎Distance from spindle center to column:650mm
MOTOR:
◎Main motor:5HP/4P
◎X,Y,Z axis servo motors::4.5Nm
◎Coolant pump:1/8HP

HEAVY DUTY BED TYPE MILLING MACHINE
