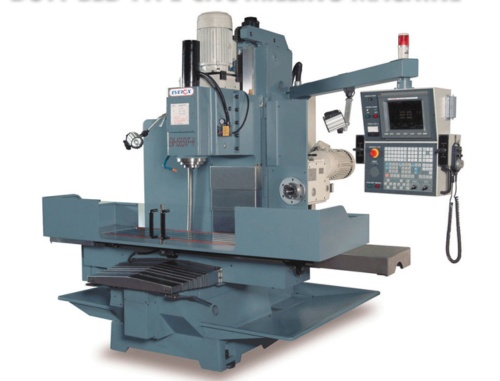

HEAVY DUTY BED TYPE CNC MILLING MACHINE
HEAVY DUTY BED TYPE CNC MILLING MACHINE

Model:EM-1565VF

Detail Specifications / Descriptions

TRAVEL:
◎Longitudinal travel-x:1500mm
◎Cross travel-Y:650mm
◎Vertical travel-Z:600/(700/800 Opt.)mm
TABLE:
◎Table size:510×1900mm
◎T-slots:18×80×5mm
◎Table load capacity:1200kgs
◎Speed feed:1-5000mm/min
◎Rapid feed:10000mm/min
SPINDLE:
◎Spindle taper:NT50#
◎Spindle speed:60/3000 rpm/min
◎Spindle nose to table:120-720/(820/920 Opt.)mm
◎Spindle center to column::610mm
BALL-SCREW:
◎X×Y×Z axis:Ø 40×10×C5mm
MOTOR:
◎Spindle motor:10HP/4P/15HP/4P Opt.
◎X,Y,Z axis servo motors:1.3/2(Opt.)kw
◎Coolant pump:1/4HP

HEAVY DUTY BED TYPE CNC MILLING MACHINE
