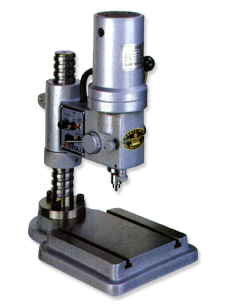

High Speed Precision Bench Drill
- Model:
- BDS-300
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
Application:
‧Glasses, watch, electron, gold, copper, steel, iron; all kinds of precise metal products can be drilled perfectily.
Characteristics:
‧High precise process in all parts; applicable to accurate drill operation.
‧Best efficient in fine adjustment, with a easy handle knob.
‧Easy to install the drill parts for having a "T" style tank upon the bench.
‧Simple operation with an active lever can adjust contact angle.
Qualities:
‧Drill capacity (maximum):
‧Steel & iron: 0.2~3mm
‧Brass & aluminum products: 0.2~4mm
‧Swing: 200mm
‧Number of revolutions of main shaft: 2000~12000rpm
‧Capacity of drilling of main shaft: 28mm
‧Operation surface upon bench: 180x180mm
‧Largest distance between drill chuck and bench: 140mm
‧Motor: 110V 3A 50/60Hz
‧Height: 508mm
‧Weight: 24kg
Specifications:
‧Steel & iron: 0.2~3mm
‧Brass & aluminum products: 0.2~4mm
‧Swing: 200mm
‧Number of revolutions of main shaft: 2000~12000rpm
‧Capacity of drilling of main shaft: 28mm
‧Motor: 110V 3A 50/60HZ
‧Height: 508mm
‧Weight: 24kg
