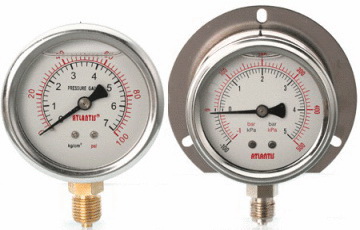

STAINLESS STEEL CASE PRESSURE GAUGE
STAINLESS STEEL CASE PRESSURE GAUGE Hot

Model:SC series Material:Stainless steel

Detail Specifications / Descriptions

Dial diameter:1½” (40mm);2” (50mm);2½” (63mm);3” (75mm);4” (100mm);6” (150mm)
Case:Stainless steel 304, IP65
Crimp bezel for dial Φ1½” ~ 4”;Bayonet bezel for dial Φ2½” ~ 6”
Lens:Acrylic or glass for dial Φ1½” ~ 4” ;Safety glass for dial Φ 4” and 6”
Dial:Aluminum, black and red markings on white background, dial arc 270°
Measuring principle:Bourdon Tube, brass
C form tube for ≦ 70 kg/cm2;Helical form tube for >70 kg/cm2
Movement :Brass
Pointer:Aluminum, black, adjustable pointer available for dial Φ 4” and 6”
Connection:Male thread 1/8”, 1/4”, 3/8”, 1/2” PT(BSPT) / NPT / PF(BSP), brass
Filling:Without (dry);glycerin filled;silicon oil filled
Accuracy:±2% F.S. for Φ1½” & 2” ; ±1.5% F.S. for Φ2½” ~ 6”
Temperature limits:
Dry:medium +60℃;ambient -20 to +60℃
Glycerin filled:medium +60℃;ambient +10 to +60℃
Silicon oil filled:medium +60℃;ambient -45 to +60℃
<Available for medium +180℃ if the bourdon tube is silver soldered. This is special custom-made type upon request.>
Ranges:
positive 0 / 1 ~ 0 / 1000 kg/cm2
negative 0 / -76 cmHg (relative vacuum)
compound -76cmHg / 0 / 1 ~ -76cmHg / 0 / 20 kg/cm2
<other units available, e.g. psi, bar, MPa…etc.>
