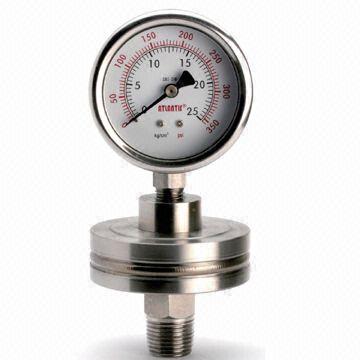

DIAPHRAGM PRESSURE GAUGE
Hot- Model:
- DS170 series
- Country of Origin:
- Taiwan
- Material:
- Stainless steel
Detail Specifications / Descriptions
Instruments :All series pressure gauges and pressure transmitters are available
Process connection (Thread):
1/4”；3/8”；1/2”；3/4”；1” PT (BSPT) / NPT, male or female thread
Other connection available made-to-order.
Note: Generally PF (BSP) thread is not available because the inlet hole is too small and it will be clogged with viscous or crystallizing medium.
Diaphragm housing(in one body):
Material：SS304；SS316；SS316L
Diameter Φ70 mm standard, Φ90 mm available
Diaphragm : SS316L
Coating (option):
Teflon；PFA
Temperature:
medium +80℃；ambient 10 to 60℃
for medium 80~400℃ or ambient below 10℃ available made-to-order
Filling fluid : Glycerin or silicon oil standard＜depends on temperature＞, fluorocarbon oil available
Pressure ranges:
General type: 0 / 1 ~ 0 / 60 kg/cm2 (bar), positive, negative or compound
High pressure type: 0 / 70 ~ 0 / 600 kg/cm2 (bar)
Accessory assembly (option):
Cooling fin
Capillary for remote measurement (specify length of capillary when ordering)
