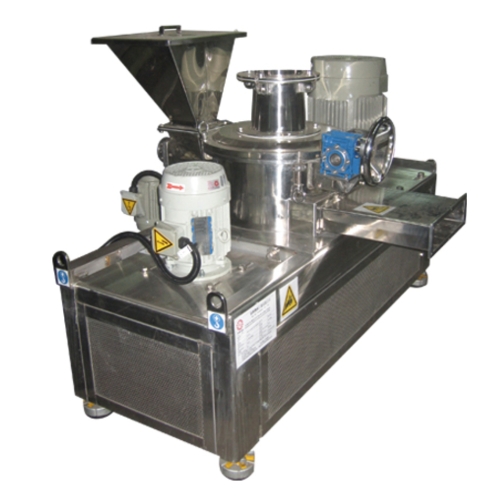

AIR CLASSIFY PULVERISER
AIR CLASSIFY PULVERISER

Model:ACP

Detail Specifications / Descriptions

▶▶ Introduction:


ACP Pulverizer is a pulverizer with Air Separator fitting in Pin Mill. Raw materials are sent to the pulverizing room by feeder, then to be pulverized by metal pin fitted in the rotor disc. In the meantime, the raw materials are sprayed into the surrounding liners through centrifugal force that furthers to pulverize the raw materials. The pulverized raw materials are then sent to separator by airflow through outside guiding. And the fine powder is attracted by fan, through separator, to be collected by Pulsaire.The rough powder separated by separator then return to pulverizing section from inside guiding for further pulverization.
ACP Pulverizer assembles rotor disc (pin disc or bar disc), liner, guiding and separator functionally against the characteristic of materials so as to make fine pulverization. In addition, use the air separator without screen to make grain adjustment; therefore, it could keep good ventilation for the pulverization room that is suitable for no heat-resistant substance, too.



▶▶ Features:



Effective pulverization and separating
It could make effective pulverization and separating. In addition, since the temperature inside the pulverization room is not raised considerable. It is an ideal machine suitable for coating resin and food etc. no heat-resistant substance.

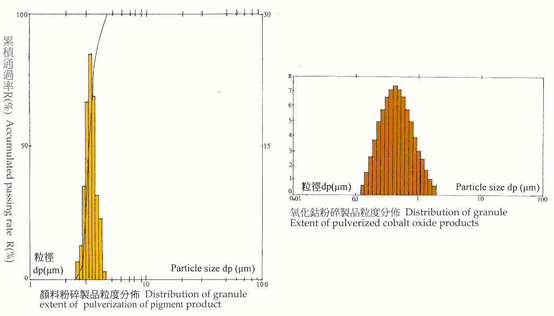

Product with even grain
Because the machine has the separating function; therefore, the distribution range for grain is narrow, and the shape of single grain is more regular.
Easy to adjust the degree of grain
The machine may adjust the degree of grain by adjustment of wind volume and change of the rotation speed for separator.
Safe installation
For safety in operation, when open the cover of pulverization room, it’s to start interlocking system that the machine could not be run. And during running the cover of pulverization room could not be opened either.
Convenient to clean
The easy removable structure for separator and grinding disc is convenient to clean. Therefore, it's very suitable for the operation that needs to change various raw materials frequently.
Strong function
This machine may deal with a great amount of air depending on the combination of pulverization and separating with strong function.

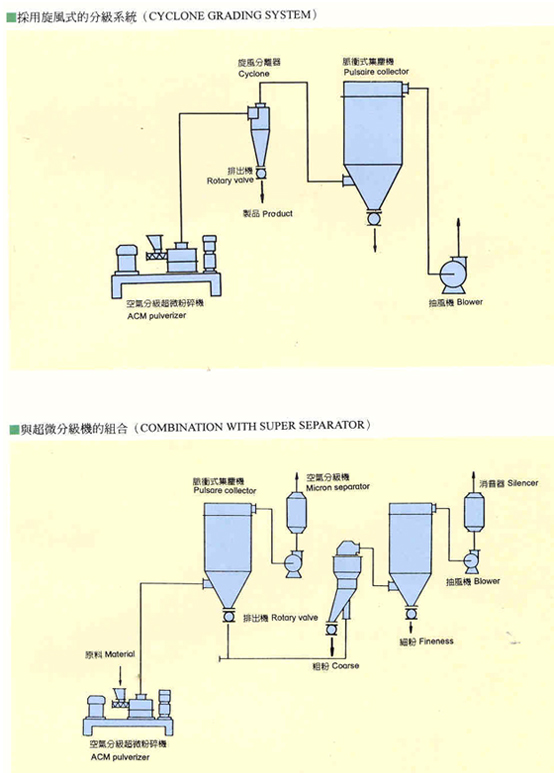

▶▶ Flow-Sheet:





▶▶ Application And Capability:






Material
Model
Raw Material
Product
Capacity
(kg/hr)


Toner
ACP-10
2~3mm
d50;40μm
50


Powder Coating
ACP-10
20mm
150mesh
100


Pigment
ACP-10
φ5~φ15mm
325mesh pass 100%
100


Epoxy Resin
ACP-10
100mesh pass 10%
100mesh pass 88%
100


Phenol Resin
ACP-10
20mm
100mesh pass 90%
200


Agricultural Chemical
ACP-10
325mesh pass 50%
325mesh pass 95%
400


Rubber Pharmaceuticals
ACP-10
1~3mm
150mesh pass 95%
400


PVC
ACP-10
d50;65μm
d50;17μm
200


Chinese Medicine
ACP-10
2~3mm
100mesh pass 91%
50


Glutamine Acid Soda
ACP-10
φ0.5 × 3mm
325mesh pass 95%
150


Corn Starch
ACP-10
200mesh 凝集體
200mesh pass 98%
150


Nonfat Bean
ACP-10
30mesh 程度
100mesh pass 94%
150


Glucose
ACP-10
100mesh pass 30%
100mesh pass 64%
400


Cocoa
ACP-10
φ5mm
100mesh pass 100%
150


Sorbitol
ACP-10
φ1~φ5mm
200mesh pass 97%
10


Crab-Shell
ACP-10
24mesh pass 16%
250mesh pass 70%
100


Shrimp-Head
ACP-10
Feather Mill 粗碎品
200mesh pass 98%
50


Gluten Meal
ACP-10
8~16mesh 程度
100mesh pass 92%
100


Aluminum Hydroxide
ACP-10
44μm pass 45%
d50;8.7μm
100


White Pepper
ACP-10
~φ6mm
65mesh pass 98%
200


Tea
ACP-10
5 × 5 × 0.5mm
AV 10μm
30


Dye Stuff-Medium
ACP-30
60mesh pass 33%
60mesh pass 100%
2000


Guava
ACP-30
200mesh pass 80%
200mesh pass 90%
100


Stearic Acid
ACP-30
10mm 薄片狀
100mesh pass 100%
300


Titanium Oxide
ACP-30
2~3mm
400mesh pass 99.9%
600


Silica
ACP-30
20mm
10μm
500


Glass Powder
ACP-30
60mesh
44μm pass 90%以上
150


Wheat Flour
ACP-60
5~100mesh
70mesh pass 100%
1500


Calcium Magnesium Chloride
ACP-60
1~3mm 纖維狀
200mesh pass 99%
200


Coke
ACP-60
8mm以下
200mesh pass 90%以上
500


Active Carbon
ACP-60
AV 100mesh
200mesh pass 90%以上
1100


Gelatin
ACP-60
2mm 程度
60mesh pass 90%
140


Fish Powder
ACP-200
2~3mm
100mesh pass 80%
2700


Pigment
ACP-30
φ5~φ15
3.6μ pass 90%
100


Stearate Magnesium
ACP-60
φ10
15μ pass 100%
500


Saw Dust
ACP-200
φ3
200mesh pass 100%
350






▶▶ Flow-Sheet :

AIR CLASSIFY PULVERISER
