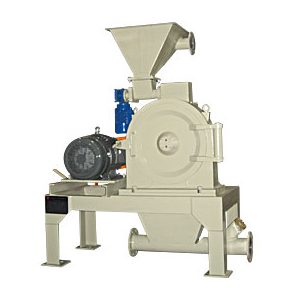

Victory Pulverizer
Victory Pulverizer

Model:VP

Detail Specifications / Descriptions

▶▶ Introduction :


Victory Pulverizer is designed for heat-sensitive materials and it is using pure impact energy. The victory pulverizer is an impact pulverizer, which is specially designed for reduction from coarse to medium size. It can pulverize a wide range of variety materials.And, it is also an efficient pulverizer in handling thermoplastic and other heat sensitive materials successfully. After grinding the material's particle size will be an uniform distribution. As a result, this pulverizer is not only capable to pulverize the heat sensitive material but also capable to grinding other materials as well.


▶▶ Features :



CENTER FEEDING
The material is feeding into the center of grinding chamber because it is helpful for material to spreading uniformly.
MULTIPLE LINERS & SCREENS
Liners and screens are divided to many pieces and installed alternately in the grinding chamber that creates the circumferential air flow. By this air flow, the uniform distribution is obtained. Also, liners and screens are interchangeable and suitable. They can be arranged differently depending on the production requirement.
ROTOR DESIGN
In the center of chamber, there is a multiple blade rotor. This rotor is a special design for grinding heat sensitive materials because of its low friction between particles. In fact, it has a precise space with the liners that produces an pure impact energy to the particles.

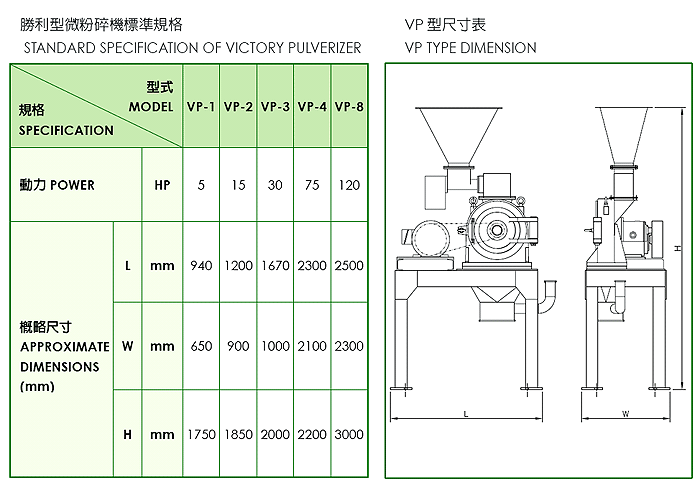

▶▶ Specification :







▶▶ Flow-Sheet :







In this system, Victory Pulverizer and Pulsaire Dust Collector are installed with a Pneumatic Conveying System. Raw materials are feed into Victory Pulverizer by Flo-Tron feeder. After pulverizing, the product will be air transfer to Pulsaire Dust Collector by a fan.









In this system, Micron Separator is added after Victory Pulverizer. Therefore,after pulverizing the over size of particles can be either returned to Victory Pulverizer for further pulverizing or taken out of production line.This will help customers to collect more uniform fineness.




▶▶ Application And Capability :




Material
Feed Size
Capacity
(kg/hr/hp)
Product Fineness


Polyethylene
4 mm
1.1
24-100 mesh


Polyethylene
4 mm
3.8
16-80 mesh


Polyethylene
3-4 mm
3.0
16-80 mesh


A.B.S. Resin
3-4 mm
2.9
10-80 mesh


Epoxy Resin
4 mm
24.0
98% pass 100 mesh


PVC
3-10 mm
1.1
32-100 mesh


Coffee Bean Residue
1-2
6.9
16-100 mesh


PVA
5 mm
4.5
95.5% pass 24 mesh


Nylon 66
3 mm
1.0
99% pass 32 mesh


Paraffin + White Carbon
1-2 mm
20.0
51.4% pass 100 mesh


Methyl Cellulose
10 mm
1.8
99% pass 60 mesh


Acrylic Resin
3-10 mm
12.0
16-100 mesh


Saran Resin
8-24 mesh
4.0
16-150 mesh


Urea Resin
5-10 mm
25.0
99% pass 40 mesh


Detergent
0.5-7 mm
25.0
Max. 45 micron


Synthetic Protein
2-3 mm
1.2
92% pass 100 mesh


Teflon Tips
2-6 mm
2.6
97% pass 20 mesh


Synthetic Glue
8-32 mesh
29.0
99.4% pass 16 mesh


Bleaching Powder
0.3 mm
80.0
94% pass 100 mesh


Phenolic Resin
6-7 mm
40.0
83% pass 115 mesh


Rice
3 mm
24.0
92% pass 115 mesh


Corn starch
1-2 mm
5.3
95% pass 80 mesh
