K73/K75 Extension Head | Machine Tool Special Attachment Head|For Double Column Milling Machine

K73/K75 Extension Head | Machine Tool Special Attachment Head|For Double Column Milling Machine

Hot
Model:
K73/K75
Country of Origin:
Taiwan
Color:
Blue

Detail Specifications / Descriptions

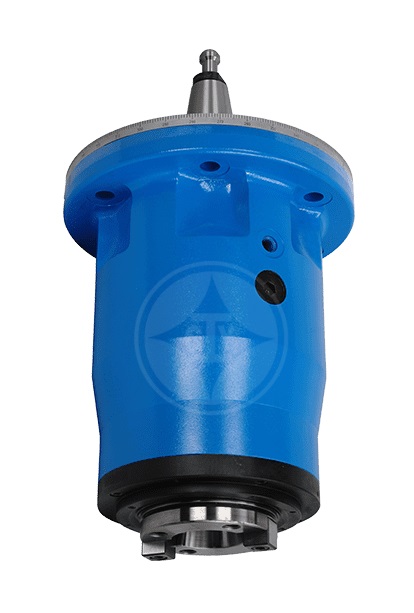

K73/K75 Extension Head, Machine Tool Special Attachment Head for Double Column Milling Machine; instantly extends vertical/cross-milling reach and depth; compact, convenient operation with tapered-roller bearings for low-speed heavy cuts; chrome-moly spindle, carburized and precision-ground.

Patented!
***The patent has been approved, counterfeiting will be investigated!

Features
1. Could change machine to make vertical milling and cross milling.
2. Volume is small, convenient operation, suitable to make complex of machine tools.
3. Spindle are made of chromium molybdic acid alloy steel, through quenching and precise grinding.
4. Bearing are use tapered roller bearing, suitable for low-speed cutting.
5. Cutter shank can use NT or BT (pull stud must be removed). Particular suitable cutter shank draw bar can be .attached which should be required when ordering.

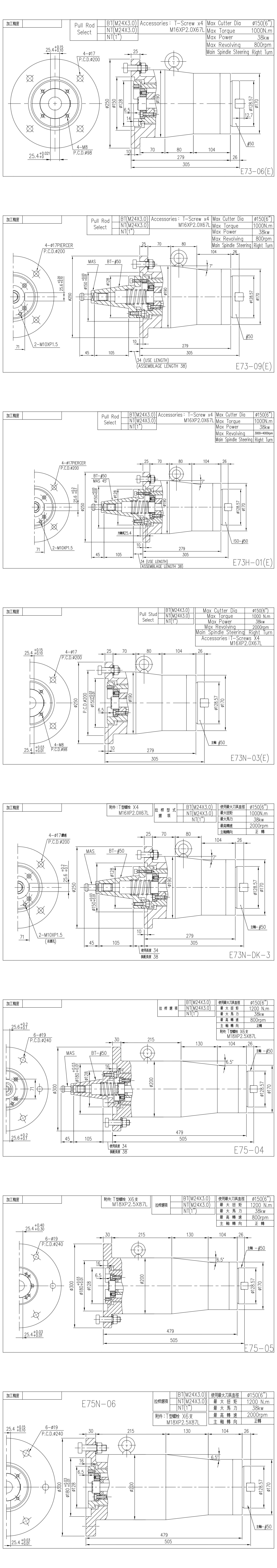

6. Length:E73-300L,E75-500L .


specifications
TYPEMax Tool Dia.Reduction RatioMax TorqueMax HorsepowerMax Use SpeedSpindle SteeringAccessory
K73ψ1501:163KW1200N.m2000rpm#50/ForwardM18×P2.5×87L-6Pieces
K75ψ1501:163KW1200N.m2000rpm#50/ForwardM18×P2.5×87L-6Pieces


Application
