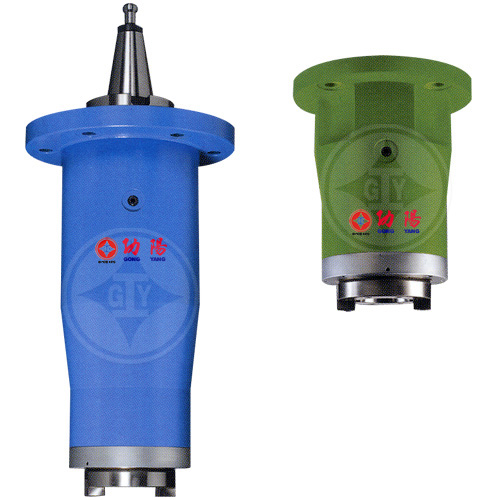

E73, E73N, E75, E75N Extend Head | For Double Column Milling MachineAttachment Head Application

E73, E73N, E75, E75N Extend Head | For Double Column Milling MachineAttachment Head Application

Model:
E73, E73N, E75, E75N
Country of Origin:
Taiwan
Color:
Blue

Detail Specifications / Descriptions

E73/E73N/E75/E75N Extension Head, Machine Tool Special Attachment Head for vertical and cross milling—instantly extends cutting distance/depth; compact operation, Cr-Mo spindle (quenched/ground) and tapered-roller bearings.

Features
1. Could change machine to make vertical milling and cross milling.
2. Volume is small, convenient operation, suitable to make complex of machine tools.
3. Spindle are made of chromium molybdic acid alloy steel, through quenching and precise grinding.
4. Bearing are use tapered roller bearing, suitable for low-speed cutting.
5. Cutter shank can use NT or BT (pull stud must be removed). Particular suitable cutter shank draw bar can be attached .which should be required when ordering.
6. LengthH:E73-300L,E75-500L .

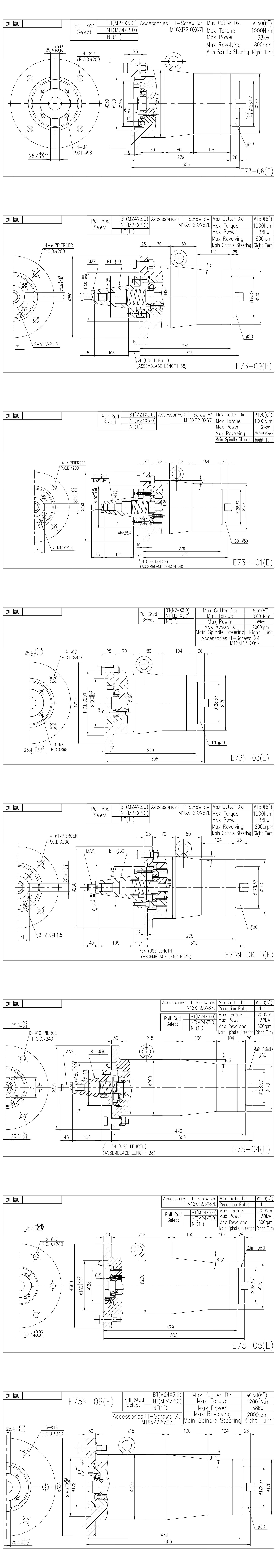

Specifications
TYPEMax Tool Dia.Reduction RatioMax TorqueMax HorsepowerMax Use SpeedSpindle SteeringAccessory
E73ψ1501:138KW1000N.m800rpm#50/ForwardM16×P2.0×67L-4Pieces
E73Nψ1501:138KW1000N.m2000rpm#50/ForwardM16×P2.0×67L-4Pieces
E75ψ1501:138KW1200N.m800rpm#50/ForwardM18×P2.5×87L-6Pieces
E75Nψ1501:138KW1200N.m2000rpm#50/ForwardM18×P2.5×87L-6Pieces


Application
