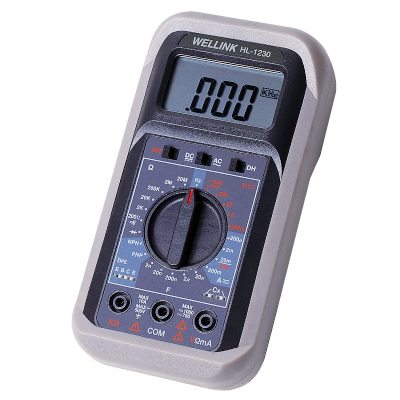

Digital Multi-Meter

‧ 3-1/2 dig. big LCD
‧ Perfect inner circuit protection with fuses and diodes
‧ Continuity test (BUZZER) with resolution 0.1Ω
‧ AC/DC 10A range with 10A fuse protection
‧ Autoranging Frequency
‧ Transistor (hEF) and diode and battery test
‧ Capacitance measurements 1PF~20 μ F
‧ Autoranging frequency measurements 1~20 MHz with sensitivity 0.3Vrms
‧ With Protective holster
‧Low battery detect


‧DC Volt: 0-200mV/2V/20V/200V/1000V ±0.8%
‧AC Volt: 0-200mV/2V/20V/200V/750V ±1.5%
‧DC Current: 0-200μA/2mA/20mA/200mA ±1.0%, 10A ±2%
‧AC Current: 0-200μA/2mA/20mA/200mA ±1.5%, 10A ±2.5%
‧Resistance: 0-200Ω/2KΩ/20KΩ/200KΩ/2MΩ ±1%, 20MΩ ±2.0%
‧Capacitance: 0-2nF/20nF/200nF/2μF/20μF ±3%
‧Frequency: 0-2KHz/20KHz/200KkHz/2MHz/10MHz ±0.5% (Auto-Range)


‧Diode test function
‧hFE test function (NPN/PNP)
‧Continuity test function <30Ω
‧Data hold
‧Protective holster
‧Dimension: 153x74x45mm (HxWxD)
‧Weight: Approx, 355g
‧Safety: CE Approved, IEC 1010-1 (EMC / LVD)
