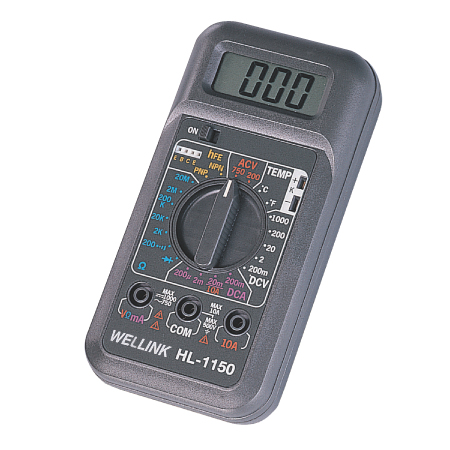

Digital Multi-Meter
- Model:
- HL-1150
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
‧ 3-1/2 dig. big LCD with maximum reading of 1999
‧ Perfect inner circuit protection with fuses and diodes
‧ Continuity test (BUZZER) with resolution 0.1Ω
‧ DC 10A range with 10A fuse protection
‧ Transistor (hEF) and diode test
‧ Temperature measurements -50℃~1370℃ (-58°F~1999°F)
‧ Low battery detect
‧ DC Volt: 0-200mV/2V/20V/200V/1000V ±0.8%
‧ AC Volt: 0-200V/750V ±2%
‧ DC Current: 0-200μA/2mA/20mA/200mA ±1.2%, 10A ±2%
‧ Resistance: 0-200Ω/2KΩ/20KΩ/200KΩ/2MΩ ±1.0%, 20MΩ ±2.0%
‧ Temperature: -50℃~1370℃, -58℉~1999℉±1.8%
‧ Diode test function
‧ hFE test function (NPN/PNP)
‧ Continuity test function <30Ω
‧ Dimension: 145x74x37mm (HxWxD)
‧ Weight: Approx, 305g
‧ Safety: CE Approved, IEC 1010-1 (EMC / LVD)
