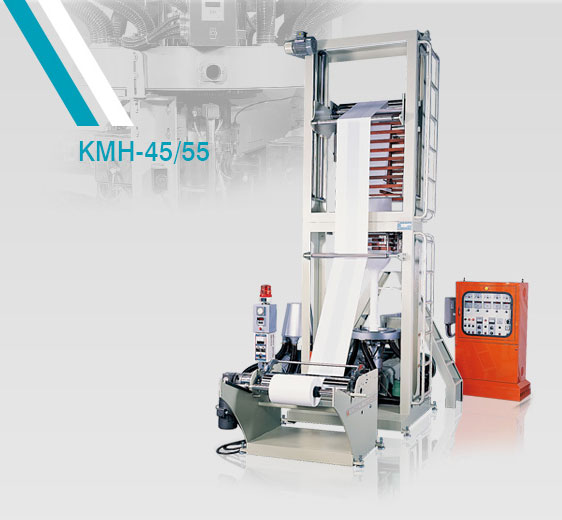

HDPE HIGH SPEED PLASTIC INFLATION MACHINE

MODEL	KMH-45	KMH-55
KMH-45	KMH-55
SUITABLE MATERIAL	HDPE	HDPE
HDPE	HDPE
FILM THICKNESS	0.008-0.10 mm	0.008-0.10 mm
0.008-0.10 mm	0.008-0.10 mm
FILM WIDTH RANGE	650 mm	900 mm
650 mm	900 mm
FILM OUTPUT	10-42 kgs/hr	20-60 kgs/hr
10-42 kgs/hr	20-60 kgs/hr
EXTRUDER UNIT
SCREW DIAMETER/TYPE	Ø 45mm	Ø 55mm
Ø 45mm	Ø 55mm
SCREW L/D RATIO	26:1	26:1
26:1	26:1
HEATING CAPACITY	8.6 kw	12 kw
8.6 kw	12 kw
AUTO THERMO CONTROL	3 zone	3 zone
3 zone	3 zone
BARREL COOLING FAN	1/8 HP×2	1/8 HP×2
1/8 HP×2	1/8 HP×2
DRIVING MOTOR	AC 20 HP + Inverter	AC 30 HP + Inverter
AC 20 HP + Inverter	AC 30 HP + Inverter
DIE UNIT
DIE DIAMETER	Ø70/90 mm	Ø80/100 mm
Ø70/90 mm	Ø80/100 mm
AIR RING DIAMETER	Ø120 mm	Ø150 mm
Ø120 mm	Ø150 mm
HEATING CAPACITY	6.1 kw	7.6 kw
6.1 kw	7.6 kw
AUTO THERMO CONTROL	2 zone	2 zone
2 zone	2 zone
COOLING BLOWER	3 HP	5 HP
3 HP	5 HP
TAKE-UP UNIT
TAKE-UP ROLLER	760 mm	1100 mm
760 mm	1100 mm
EFFECTIVE WIDTH	660 mm	1000 mm
660 mm	1000 mm
TAKE-UP MOTOR	AC 1/2 HP	AC 1/2 HP
AC 1/2 HP	AC 1/2 HP
TAKE-UP SPEED	85 m/min	75 m/min
85 m/min	75 m/min
ELEVATING MOTOR	AC 1/2 HP
AC 1/2 HP
WINDING UNIT
ROLLER WIDTH	760 mm	1100 mm
760 mm	1100 mm
WINDING WIDTH	660 mm	1000 mm
660 mm	1000 mm
WINDING MOTOR	DC 1/2 HP	DC 1 HP
DC 1/2 HP	DC 1 HP
MACHINE DIMENSION	470×165×400 cm	500×200×400 cm
470×165×400 cm	500×200×400 cm

* Remark: The above machine specification and production range can be changed without any notice due to kind of different application.
