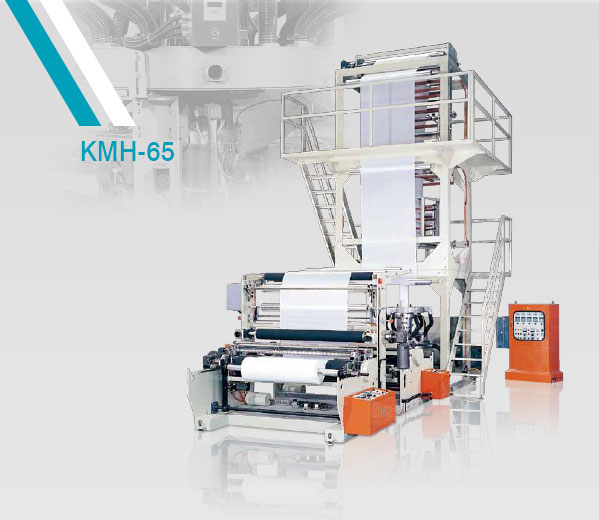

HDPE HIGH SPEED PLASTIC INFLATION MACHINE
HDPE HIGH SPEED PLASTIC INFLATION MACHINE

Model:KMH-65

Detail Specifications / Descriptions

MODEL KMH-65
KMH-65
SUITABLE MATERIAL HDPE
HDPE
FILM THICKNESS 0.008-0.10 mm
0.008-0.10 mm
FILM WIDTH RANGE 1300 mm
1300 mm
FILM OUTPUT 20-80 kgs/hr
20-80 kgs/hr
EXTRUDER UNIT
SCREW DIAMETER/TYPE Ø 65mm
Ø 65mm
SCREW L/D RATIO 26:1
26:1
HEATING CAPACITY 14.7 kw
14.7 kw
AUTO THERMO CONTROL 4 zone
4 zone
BARREL COOLING FAN 1/8 HP×2
1/8 HP×2
DRIVING MOTOR AC 50 HP + Inverter
AC 50 HP + Inverter
DIE UNIT
DIE DIAMETER Ø100/150 mm
Ø100/150 mm
AIR RING DIAMETER Ø150/200 mm
Ø150/200 mm
HEATING CAPACITY 10.6 kw
10.6 kw
AUTO THERMO CONTROL 2 zone
2 zone
COOLING BLOWER 5 HP
5 HP
TAKE-UP UNIT
TAKE-UP ROLLER 1500 mm
1500 mm
EFFECTIVE WIDTH 1400 mm
1400 mm
TAKE-UP MOTOR AC 1 HP
AC 1 HP
TAKE-UP SPEED 75 m/min
75 m/min
ELEVATING MOTOR
WINDING UNIT
ROLLER WIDTH 1500 mm
1500 mm
WINDING WIDTH 1400 mm
1400 mm
WINDING MOTOR DC 1 HP
DC 1 HP
MACHINE DIMENSION 600×400×600 cm
600×400×600 cm
* Remark: The above machine specification and production range can be changed without any notice due to kind of different application.
