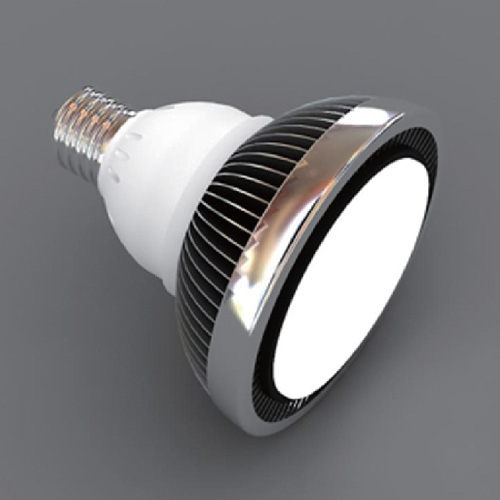

10W TRIAC Dimmable PAR30 LED Spot/Flood Lamp

10W TRIAC Dimmable PAR30 LED Spot/Flood Lamp

产品型号:
LF-TD-P30-10W
原产地:
台湾
材质:
AL/PC

详细规格及用途描述

Features
TRIAC dimmable that works directly with traditional dimming switch
Able to dim the light output from as low as < 10% to full brightness without flicker
Save energy as you dim the light ━ save even more with LED technology
Narrow Spot beam 40º or Wide Flood 120º - put a beam to where you need it
Long lifespan over 40,000 hours and low maintenance ━ perfect for hard to reach area
Stylish aluminum fins for great heat dissipation that prolong LED lifetime
Base fits standard E26/E27 socket for general compatibility and direct replacement
Light weight ━ ideal for recessed or track lighting
Replace 70W~100W traditional incandescent PAR Light
Low heat dissipation and emits no harmful UV radiation
Environmentally friendly ━ contain no mercury, lead or any harmful materials
110V model works with 100 ~ 120VAC, 220V model works with 200 ~ 240VAC
Very linear light output throughout entire dimming range

Specifications
Model No: LF-TD-P30-10W
No. of Elements: 6 High Brightness SMD LED
CRI: 70 ~ 80
Beam Angle: Spot: 40º; Flood: 120º
Lumen Output: 640 ~ 940 Lumen
Light Intensity: 1800 ~ 2730 lux @ 1m
Power Consumption: 10 watts
Working Voltage: 100 ~ 120VAC or 200 ~ 240VAC
Color Temperature:
Warm White 3000 ± 500K
Neutral White 4000 ± 500K
Daylight 6000 ± 500K
Dimming Range: <10% ~ 100%
Lifespan: Over 40,000 hrs
Housing Material: Aluminum fins with plastic base, PC
Base Type: E26/E27
Dimensions: Φ98mm x 105mm (Φ3.86” x 4.13”)
Weight: 192g (6.8oz)

Environmental
Operating Temp: -20° to 40°C (-4° to 104°F)
Storage Temp: -20° to 70°C (-4° to 158°F)
Operating Humidity: 10% to 80% RH, non-condensing, Indoor
Storage Humidity: 10% to 90% RH, non-condensing, Indoor
