Power inverters
Power inverters

产品型号:200S-12A/E, 200S-24A/E 原产地:台湾

详细规格及用途描述

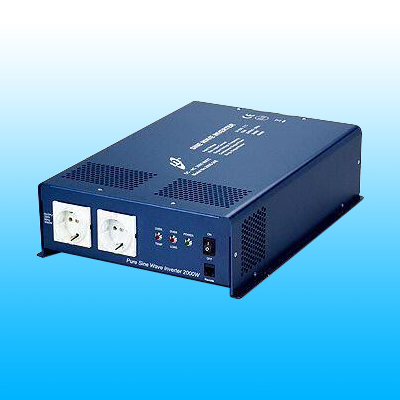

200S-12A/E, 200S-24A/E Pure Sine Wave, 2,000W, DC to AC Power Inverter, Available in Switching Mode Design

Switching mode design
High efficiency, low harmonic distortion
Pure sine wave output voltage
12 or 24V DC input and 115 or 230V AC output
Power on LED indicator
Over load protection LED indicator
Over temperature protection LED indicator
Compact and lightweight
GFCI built-in for 1,500/2,000W and as option for 600/1,000W

Protection:
Input low voltage
Input over voltage
Low battery alarm
Over temperature
Overload
Short circuit

Specifications:
Model: 200S-12A/200S-12E; 200S-24A200S-24E
Rated input voltage: 12V DC/24V DC
Output power: continuous 15 Minutes/Surge: 2,000/2,100/4,000W
Maximum input current: 240A/120A
Output voltage: 115V AC/230V AC: 115V AC +/- 3%; 230V AC +/- 3%
Output frequency: 50 or 60Hz to be specified
Output wave form: pure sine wave
Total harmonic distortion: less than 3%
Idle current:
115-12V: <1A
115-24V: <0.8A
230-12V:<1.6A
230-24V: <1A

Input voltage range: 10.7V to 16.5V; 21.4V to 33V
Low voltage alarm: 10.7V; 21.4V
Low voltage shutdown: 10V; 20V
Dimensions(L x W x H): 415 x 283 x 100mm
Weight: 5.9kg
Option-remote control: yes
Option-GFCI: yes
